NVIDIA® AI Computing Platform

EAC-30N1

Compact Fanless Embedded Edge AI Computer with NVIDIA® Jetson Orin Nano™ Super Mode

• Powered by NVIDIA® Jetson Orin Nano™
• Support Jetson Orin Nano™ Super Mode
• Onboard 4/8 GB 64/128-bit LPDDR5
• Multiple I/O interface connections for data collection
• GbE LAN, USB 3.1, Serial Port, CAN-FD
• Wide operating temperature -20 ~ 60˚C
INQUIRY COMPARE

Introduction

Specification

System
CPU/GPU
NVIDIA® Jetson Orin Nano™ 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
Memory
Onboard 4/8 GB 64/128-bit LPDDR5
Storage
1 x M.2 M-Key 2280, support NVMe
Real time clock
Yes
Indicators
1 x LED indicator (Power)
Operating system
Linux (NVIDIA JetPack 5.1.2/6.0/6.2)
Power Supply
Power Requirement
9 ~ 36 VDC
Power Consumption
Max. 25 W (with Fan)
MTBF (Hours)
--
Environmental and Mechanical

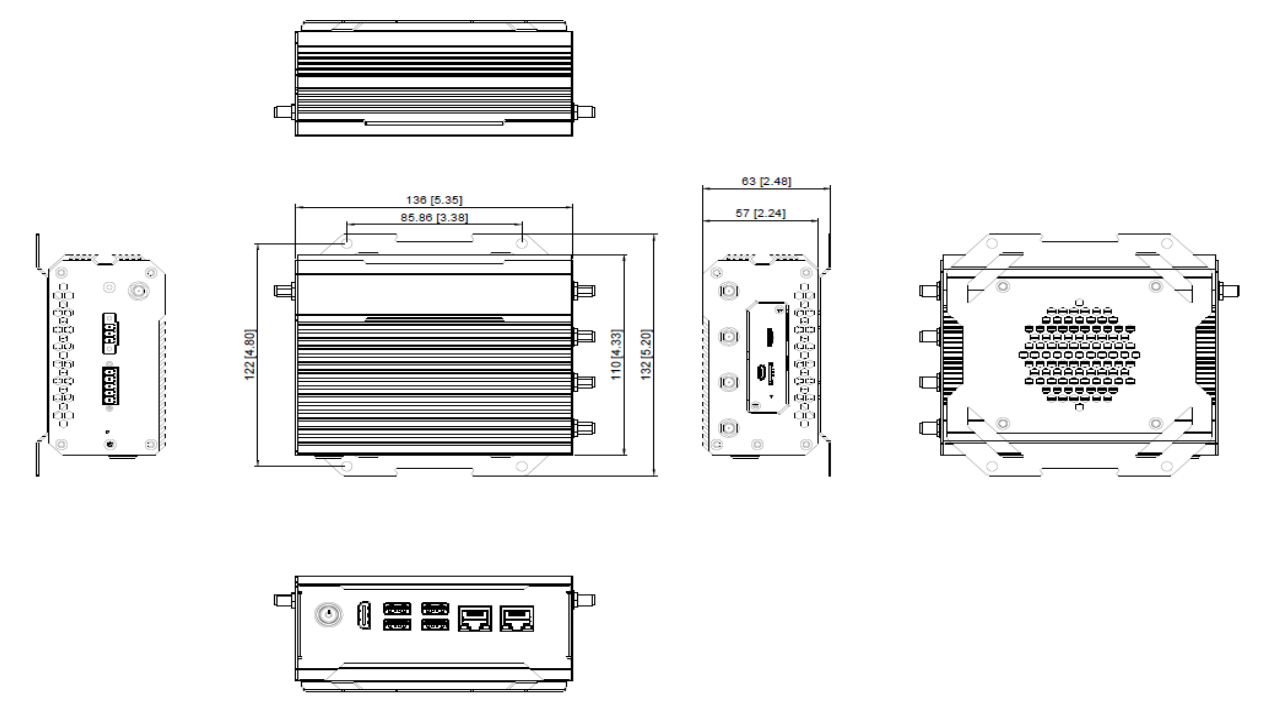

Dimension
136 x 110 x 57 mm (5.35” x 4.33” x 2.24”)
Weight
2.1 kg
Mouting/Installation
Din Rail, Wall Mount
Operating Temperature
-20 ~ 60 °C (-4 ~ 140 °F)
Storge Temperature
-40 ~ 85 °C (-40 ~ 176 °F)
Operating Humidity
10% ~ 95% relative humidity, non-condensing
Certification
Regulations
CE, FCC, BSMI
Carrier
Planning
Interface
Serial Port
1 x RS-485 with 5-pin Terminal Block
CAN Bus
1 x CAN-FD with 5-pin Terminal Block
Ethernet
2 x GbE LAN, RJ45
USB
4 x USB 3.1, Type-A
DI/DO
--
AI/AO
--
Display
1 x HDMI 2.0-Out
Power Connector
3-pin Terminal Block
Debug Port
1 x Micro USB for console
Expansion Slot
1 x M.2 E-Key 2230, 1 x M.2 B-Key 3052
Other Interface
--
SIM
1 x SIM card slot
microSD
--
Button
Power, Reset
Antenna
5 x Antenna
