eNVP Series | Embedded Edge AI & NVR Systems

eNVP-JNX-IV-V00008

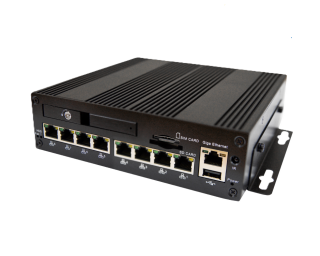

Compact Rugged Edge AI Network Video Recorder Platform with NVIDIA® Jetson Xavier™ NX

• Fanless AI network video recorder platform
• 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3 processor
• NVIDIA Volta™ architecture with 384 NVIDIA CUDA® cores
• Onboard 8 GB 128-bit LPDDR4x @1600 MHz 51.2 GB/s
• Supports 8 x PoE ports
• Supports 1 x HDMI display output
• Supports Ethernet 9 x ports (8 x PoE, 1 x GbE)
• Supports ONVIF 2.0, 2MP IP camera up to 16 channels
• Supports AI functions
• CE, FCC, E-Mark, EN50155, MIL-STD-810G

INQUIRY COMPARE

Specification

System

CPU

6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3 processor

GPU

NVIDIA Volta™ architecture with 384 NVIDIA CUDA® cores (21 TOPS [INT8])

Main Memory

Onboard 8 GB 128-bit LPDDR4x @1600 MHz 51.2 GB/s

16 GB eMMC 5.1

Interface

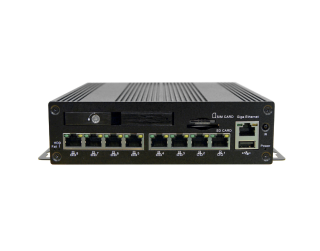

Front I/O Panel

1 x Power button, 1 x IR receiver, 1 x USB 2.0, 1 x GbE port, 8 x PoE port, 1 x Micro USB 2.0 (Internet OTG), 1 x 2.5” SSD bay, 1 x SIM card slot, 2 x LED indicator (HDD, Fail)

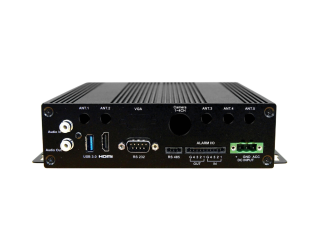

Rear I/O Panel

1 x Audio in, 1 x Audio out, 1 x USB 3.0, 1 x RS-232, 1 x RS-485, 1 x HDMI, 1 x Alarm IO (4-input, 4-output), 1 x Power input, 5 x Antenna port

Expansion Slot

2 x mPCIe (1 x full-size USB 2.0, 1 x halfsize USB 2.0)

Video

Format

H.265/H.264

Video Input

16 x IP camera EverFocus AiO NVR: up to 8ch

Video Output

1 x HDMI 2.0 a/b (max. 3840 x 2160), 1 x VGA (optional)

Resolusion

2 x 4K @60 fps, 4 x 4K @30 fps, 16 x 1080p @30 fps

Audio

Audio Input

1 x RCA

Audio Output

1 x RCA

Recording

Format

H.265/H.264

Resolusion

2 x 4K @60 fps, 4 x 4K @30 fps, 16 x 1080p @30 fps

Storage

SATA SSD

1 x 2.5” SATA (removable)

RAID

N/A

Network

Ethernet

1 x GbE port, 8 x PoE port (10/100 MbE, total 75 W)

Wi-Fi/3G/4G

Supported (optional)

GPS/G-Sensor

Onboard G-Sensor, GPS (optoinal)

Alarm

Alarm In/Out

4 x Alarm Input, 4 x Alarm Output

Sofeware

NVP Software

EverFocus AiO NVR

Genaral

Power Supply

9 ~ 36 VDC (with ignition pin)

General

Dimensions

175.6 x 183.3 x 50.5 mm (6.9” x 7.2” x 2”) (without bracket)

Gross Weight

1.8 kg/4 lb

Operating Temperature

-20 ~ 65 °C (-4 ~ 149 °F)

Storage Temperature

-20 ~ 85 °C (-4 ~ 185 °F)

Storage Humidity

95% @40 °C, non-condensing

Vibration/Shock

MIL-STD-810G

Certification

CE, FCC, E-Mark, EN50155
