AI-ADAS Mobile DVR

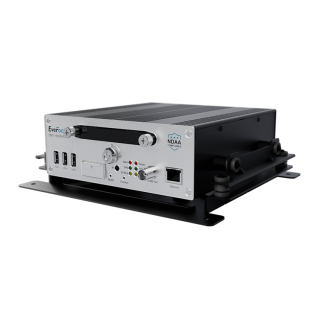

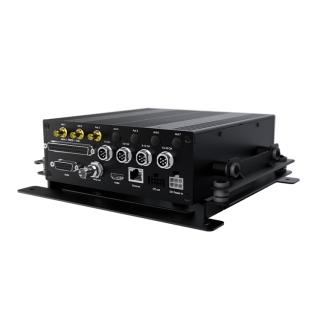

EMV1600 FHD-AI (Prelim.)
16 Channels 1080p Full HD Hybrid Mobile DVR
．Supports AHD/TVI/SD Analog Cameras (up to 1080p) and IP Cameras (up to 1080p)
．Supports ONVIF 2.0 IP Cameras
．Supports H.264 / H.265 video compression
．Supports 2.5" SSD x 1 (Max. 8TB)
．Supports Network GbE x 2, 3-axis G-sensor embedded
．Supports multiple serial interfaces
．Supports UTC control
．IR remote control function
．M12 Aviation connectors adopted
．Multiple network monitoring: GNSS JT808 protocol fleet management server system supported (by Project)
．BSIS, ADAS, DMS AI Function Supported
．Certificates: CE, FCC, EN50155 (shock & vibration), VSCC 56-3 (by Project), ECE R10, ECE R118 (by Project)
．Supports ONVIF 2.0 IP Cameras
．Supports H.264 / H.265 video compression
．Supports 2.5" SSD x 1 (Max. 8TB)
．Supports Network GbE x 2, 3-axis G-sensor embedded
．Supports multiple serial interfaces
．Supports UTC control
．IR remote control function
．M12 Aviation connectors adopted
．Multiple network monitoring: GNSS JT808 protocol fleet management server system supported (by Project)
．BSIS, ADAS, DMS AI Function Supported
．Certificates: CE, FCC, EN50155 (shock & vibration), VSCC 56-3 (by Project), ECE R10, ECE R118 (by Project)
Specification
Video
Number of Channels
Up to 16CH (Hybrid: 8 Analog + 8 IP)
Video Compression
H.264 / H.265
Main Monitor
HDMI x 1
Call Monitor
BNC x 1 / AHD x 1
Alarm Inputs
8
Alarm Outputs
4
Video Loss Detection
Yes
Event Alarm
Yes
Audio
Audio Inputs
16
Audio Outputs
1 (RCA)
Recording
Recording Resolution
Analog: 1080p / 720p / CIF / D1;
IP: 1080p / 720p
IP: 1080p / 720p
Recording Mode
Event, Normal + Event, Schedule
Recording Rate NTSC
Analog/IP: 15fps @1080p; 30fps @ all other resolutions;
Analog/IP: 30fps@1080p (8ch only)
Analog/IP: 30fps@1080p (8ch only)
Recording Rate PAL
Analog: 12fps @1080p; 25fps @all other resolutions;
IP: 25fps/CH Analog/IP: 25fps@1080p (8ch only)
IP: 25fps/CH Analog/IP: 25fps@1080p (8ch only)
Playback
Playback Search
Time / Date, Event Search / Picture Search
Network
Ethernet
1GbE x 2 (RJ-45 x 2)
WiFi
Supported (Optional)
4G / 5G
Supported (Optional)
GPS
Supported (Optional)
Storage Device
HDD
2.5" SSD x 1 (Max. 8TB)
SD Card
SD/SDHC Card (Max. 512 GB)
General
Interfaces
RJ-45 x 2, RS232 x 2, RS485 x 1, USB x 3, CANBUS x 2
GSensor
3-Axis G-Sensor embedded
System Control
IR Remote Control, Mouse
PTZ Control
Yes
Power Source
DC 9-36 V
Power Consumption
20W / 60W (Heater On)
Operating Temperature
-20°C ~ 55°C / -4°F ~ 131°F
Dimensions (W x D x H)
229.6 x 218 x 75.4mm / 9.04" x 8.58" x 2.9" (with anti-vibration bracket)
Weight
2.6kg / 5.73lb (with anti-vibration bracket)
Certificates
CE, FCC, EN50155 (shock & vibration)
Remote Client System Minimum Requirement
Operating System
Win10 (64-bit) / Win11 (64-bit)
CPU
Intel Core I3-10100
RAM
8GB
Graphic
Intel Iris Graphics
LAN Speed
10 / 100 / 1000 Mbps
Web Browser
Edge (IE Mode Enabled)
