EAR Series | Robotic Controllers

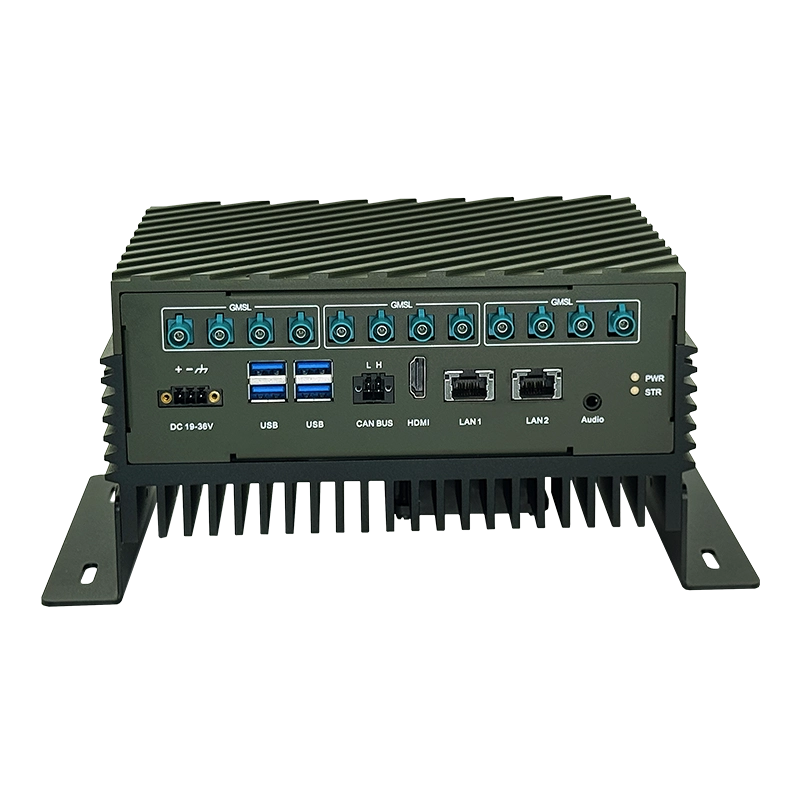

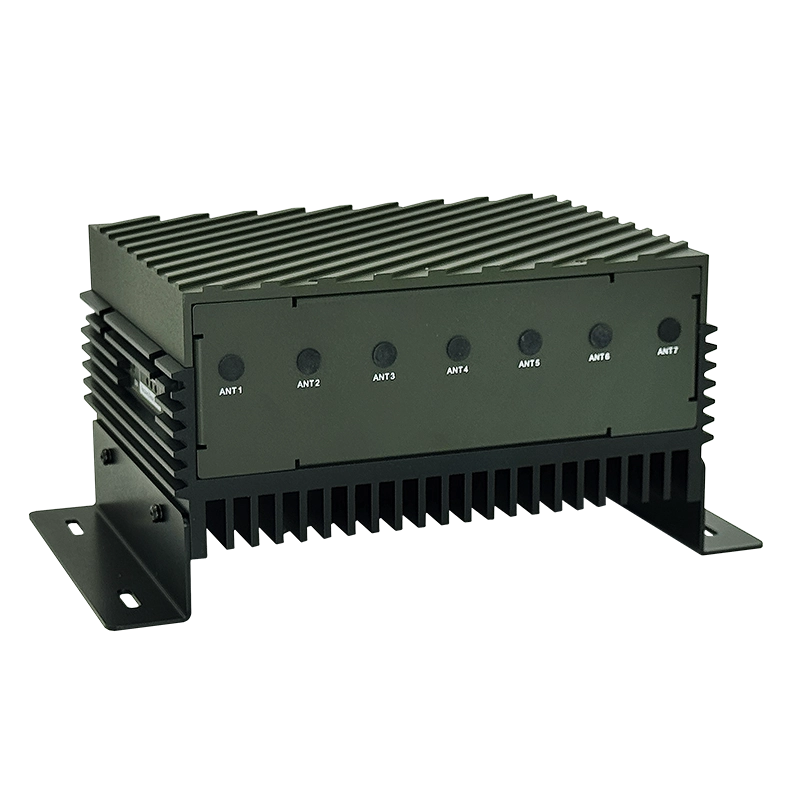

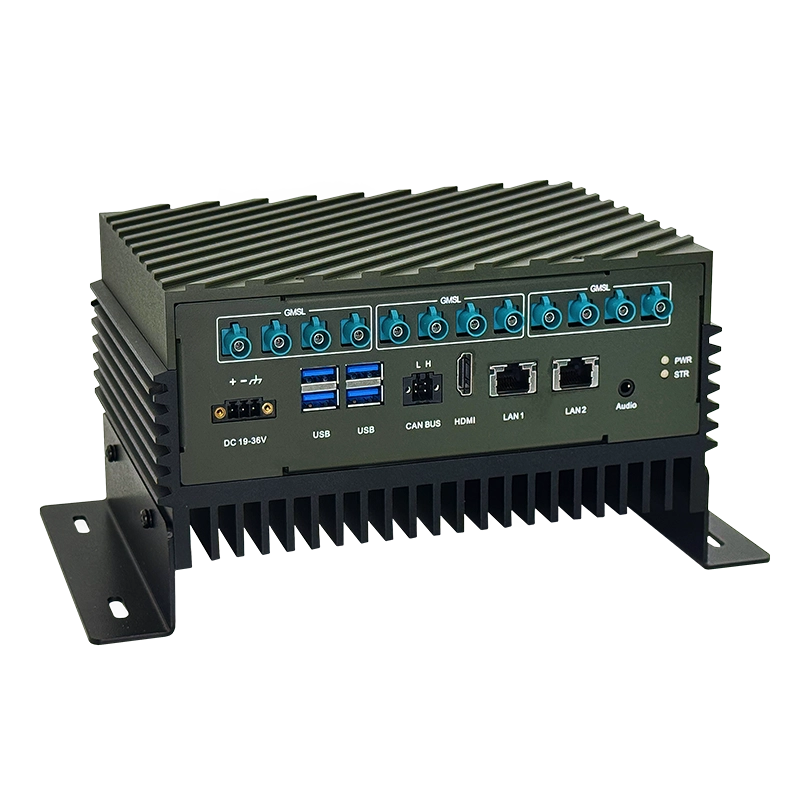

EAR-100T

Robotic Controller with NVIDIA® Jetson Thor™ Module

• Accelerated by NVIDIA® Jetson T5000™
• Up to 2070 FP4 TFLOPS of AI compute and 128 GB of memory
• 12 x GMSL2 camera FAKRA Z code interface with frame sync
• 2 x 5 GbE LAN, 2 x CAN-FD
• 4 x USB 3.2, 1 x Audio (optional)
• Power input 19 ~ 36 VDC

INQUIRY COMPARE

Introduction

The EAR-100T is a high performance robotic controller designed for autonomous robotics, AMR, sensor fusion, and industrial edge AI applications. Powered by the NVIDIA Jetson Thor platform and accelerated by NVIDIA Jetson T5000, it delivers up to 2070 FP4 TFLOPS of AI compute and 128 GB of memory for demanding real time robotics workloads.

With 12 GMSL2 camera interfaces with frame sync, 2 x 5 GbE LAN, 2 x CAN-FD, USB 3.2, HDMI, and 19 to 36 VDC power input, the EAR-100T provides the connectivity needed for multi camera vision, localization, perception, motion control, and robotic system integration.

The EAR-100T is suitable for:

Autonomous mobile robots
Robotic perception and localization
Sensor fusion
Multi camera vision systems
Industrial robotics
Autonomous vehicle development
Smart manufacturing
Warehouse automation
AI powered robotic inspection

EAR-100T FAQ: https://www.everfocus.com/faq/EAR-100T/

Specification

System

CPU/GPU

NVIDIA Jetson T5000 Blackwell GPU + Arm Neoverse V3AE CPU

Memory

128 GB (8 x 16 GB) memory with 256-bit LPDDR5X DRAM

Storage

1 x M.2 M-Key 2280, support NVMe

Real time clock

Yes

Indicators

2 x LED indicator (Power/Storage)

Wireless

1 x M.2 E-Key 2230, Wi-Fi/BT, 1 x M.2 B-Key 3052, 4G/5G"

Operating system

NVIDIA JetPack™ 7.0

Power Supply

Power Requirement

19 ~ 36 VDC

Power Consumption

TBD

MTBF (Hours)

Environmental and Mechanical

Dimension

200 x 145 x 97 mm (7.87” x 5.7” x 3.82”)

Weight

2.8kg

Mouting/Installation

Wall Mount

Operating Temperature

-20 ~ 60 °C (-4 ~ 140 °F)

Storge Temperature

-40 ~ 85 °C (-40 ~ 176 °F)

Operating Humidity

10% ~ 95% relative humidity, non-condensing

Certification

Regulations

CE, FCC

Interface

GMSL Camera

12 x FAKRA Z code with frame sync

CAN Bus

2 x CAN-FD

Ethernet

2 x 5 GbE LAN, RJ45

USB

4 x USB 3.2, Type-A (Optional)

Display

1 x HDMI 2.0-Out

Audio

1 x speaker, 1 x Mic in (Optional)

Power Connector

3-pin Terminal Block

Debug Port

1 x USB type C

SIM Slot

1 x Dual SIM Card Socket

Expansion Slot

1 x M.2 E-key (2230) for Wi-Fi/BT, 1 x M.2 M-key (2280) for NVMe SSD, 1 x M.2 B-key (3052) for 4G/5G

Other Interface

Build in IMU, GNSS
