eNVP Series | Embedded Edge AI & NVR Systems

eNVP-JON-UB

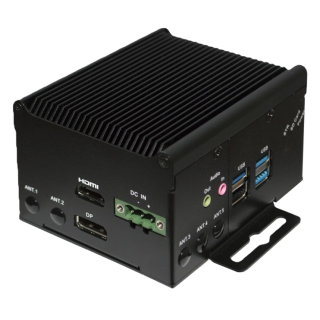

Fanless Embedded Edge AI System with NVIDIA® Jetson Orin™ Nano

• Powered by NVIDIA® Jetson Orin™ Nano
• Onboard 8/4 GB 128-bit LPDDR5
• Multiple I/O interface connections for data collection GbE LAN, USB 3.1, Serial Port, CAN, Alarm I/O
• Wide operating temperature range -20 ~ 50˚C
INQUIRY COMPARE

Specification

System
CPU/GPU
NVIDIA® Jetson Orin™ Nano 6-core Arm® Cortex® -A78AE v8.2 64-bit CPU 1024/512-core NVIDIA Ampere architecture GPU with 32/16 Tensor Cores
Memory
Onboard 8/4 GB 128-bit LPDDR5
Storage
1 x M.2 M-Key 2280, support NVMe
Real time clock
Yes
Indicators
3 x LED indicator (Power, SD Card, SSD)
Wireless
1 x M.2 E-Key 3042/3052
Operating system
Linux (NVIDIA JetPack 5.1 and above)
Power Supply
Power Requirement
12 VDC
Power Consumption
Max. 15 W (with Fan)
MTBF (Hours)
--
Environmental and Mechanical
Dimension
114 x 104 x 60.7 mm (4.4” x 4.0” x 2.39”)
Weight
0.65 kg
Mouting/Installation
Din Rail, Wall Mount
Operating Temperature
-20 ~ 50 °C (-40 ~ 122 °F)
Storge Temperature
-40 ~ 85 °C (-40 ~ 176 °F)
Operating Humidity
10% ~ 95% relative humidity, non-condensing
Certification
Regulations
CE, FCC
Carrier
Planning
Interface
Serial Port
2 x UART, 1 x RS-485
CAN Bus
1 x CAN Bus
Ethernet
1 x GbE LAN, RJ45
USB
3 x USB 3.1, Type-A, 1 x USB 2.0, Type-A
DI/DO
6 x GPIO
AI/AO
--
Display
1 x HDMI 2.0-Out
Power Connector
Terminal Block
Debug Port
1 x Micro USB for console
Expansion Slot
1 x SIM card slot, 1 x microSD slot
Other Interface
--

Download
