eNVP Series | Embedded Edge AI & NVR Systems

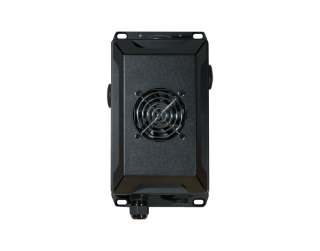

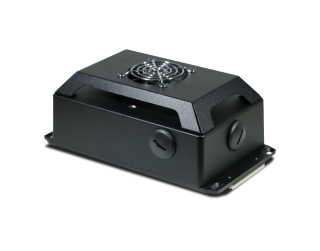

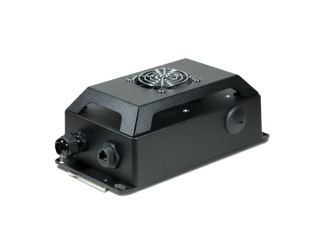

eNVP-JOX-UBIP

IP65 Certified Embedded Edge AI System with NVIDIA® Jetson Orin™ NX

• Powered by NVIDIA® Jetson Orin™ NX
• Onboard 16 GB 128-bit LPDDR5
• IP65 Design
• Wide operating temperature range -30 ~ 70˚C
INQUIRY COMPARE

Specification

System
CPU/GPU
NVIDIA® Jetson Orin™ NX 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
Memory
Onboard 16 GB 128-bit LPDDR5
Storage
1 x M.2 M-Key 2280, support NVMe
Real time clock
Yes
Indicators
1 x LED indicator (Power)
Wireless
N/A
Operating system
Linux (NVIDIA Jetpack 5.1 and above)
Power Supply
Power Requirement
12 VDC
Power Consumption
Max. 25 W (with Fan)
MTBF (Hours)
--
Environmental and Mechanical
Dimension
217 x 120 x 90 mm (8.54” x 4.72” x 3.54”)
Weight
0.65 kg
Mouting/Installation
Wall Mount
Operating Temperature
-30 ~ 70 °C (-22 ~ 158 °F)
Storge Temperature
-40 ~ 85 °C (-40 ~ 176 °F)
Operating Humidity
10% ~ 95% relative humidity, non-condensing
Certification
Regulations
CE, FCC
Carrier
Planning
Interface
Serial Port
--
CAN Bus
--
Ethernet
1 x GbE LAN RJ45
USB
--
DI/DO
--
AI/AO
--
Display
--
Power Connector
2 wire DC cable
Debug Port
--
Expansion Slot
--
Other Interface
--
