eNVP Series | Embedded Edge AI & NVR Systems

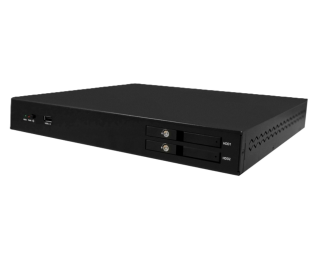

eNVP-JNX-IV-D0008

Edge AI Network Video Recorder Platform with NVIDIA® Jetson Xavier™ NX

• AI Network video recorder platform
• 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3 processor
• NVIDIA Volta™ architecture with 384 NVIDIA CUDA® cores
• Onboard 8 GB 128-bit LPDDR4x @1600 MHz 51.2 GB/s
• Supports 8 x PoE ports
• Supports 1 x HDMI display output
• Supports Ethernet 9 x ports (8 x PoE, 1 x GbE)
• Supports ONVIF 2.0, 2MP IP camera up to 8 channels
• Supports AI functions
• CE, FCC certified

INQUIRY COMPARE

Specification

System

CPU

6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3 processor

GPU

NVIDIA Volta™ architecture with 384 NVIDIA CUDA® cores (21 TOPS [INT8])

Main Memory

Onboard 8 GB 128-bit LPDDR4x @1600 MHz 51.2 GB/s

16 GB eMMC 5.1

Interface

Front I/O Panel

2 x LED indicator (HDD, power), 1 x Power button, 1 x USB 2.0

Rear I/O Panel

1 x USB 3.0, 1 x USB 2.0, 1 x Micro USB 2.0 (Internal OTG), 1 x RS-485, 1 x RS-232, 1 x GbE port, 8 x PoE port ,1 x Audio in, 1 x Audio out, 1 x HDMI, 1 x VGA (optional), 1 x Power switch, 1 x Power input port, 1 x Alarm IO (4-input, 4-output)

Expansion Slot

N/A

Video

Format

H.265/H.264

Video Input

16 x IP camera EverFocus AiO NVR: up to 8ch

Video Output

1 x HDMI (2.0 a/b maximum 3840 x 2160), 1 x VGA (optional)

Resolusion

2 x 4K @60 fps, 4 x 4K @30 fps, 16 x 1080p @30 fps

Audio

Audio Input

1 x RCA

Audio Output

1 x RCA

Recording

Format

H.265/H.264

Resolusion

2 x 4K @60 fps, 4 x 4K @30 fps, 16 x 1080p @30 fps

Storage

2.5”SATA HDD

1 x SKU1/SKU3, 2 x SKU2/SKU4

Removable SSD Tray

Supported

RAID

N/A

Network

Ethernet

1 x GbE port, 8 x PoE port (10/100 MbE, 52V/2.5A, total: 130 W based)

Wi-Fi/3G/4G

N/A

GPS/G-Sensor

N/A

Alarm

Alarm In/Out

4 x Alarm Input, 4 x Alarm Output

Genaral

Power Supply

SKU1/SKU2: 100 ~ 240 VAC, 180 W ATX, SKU3/SKU4: 48 VDC, 2.5A, 120 W

General

Dimensions

314 x 282.2 x 49.6 mm (12.4” x 11.1” x 2”)

Gross Weight

SKU1: 3 kg/6.6 lb, SKU2: 3.1 kg/6.8 lb, SKU3: 2.5 kg/5.5 lb, SKU4: 2.6 kg/5.7 lb

Operating Temperature

0 ~ 40 °C (32 ~ 104 °F)

Storage Temperature

-20 ~ 85 °C (-4 ~ 185 °F)

Storage Humidity

95% @40 °C, non-condensing

Vibration/Shock

0.25 Grms @ 5 ~ 500 Hz, random, 1 hr/axis

Certification

CE, FCC
