EAC-70N

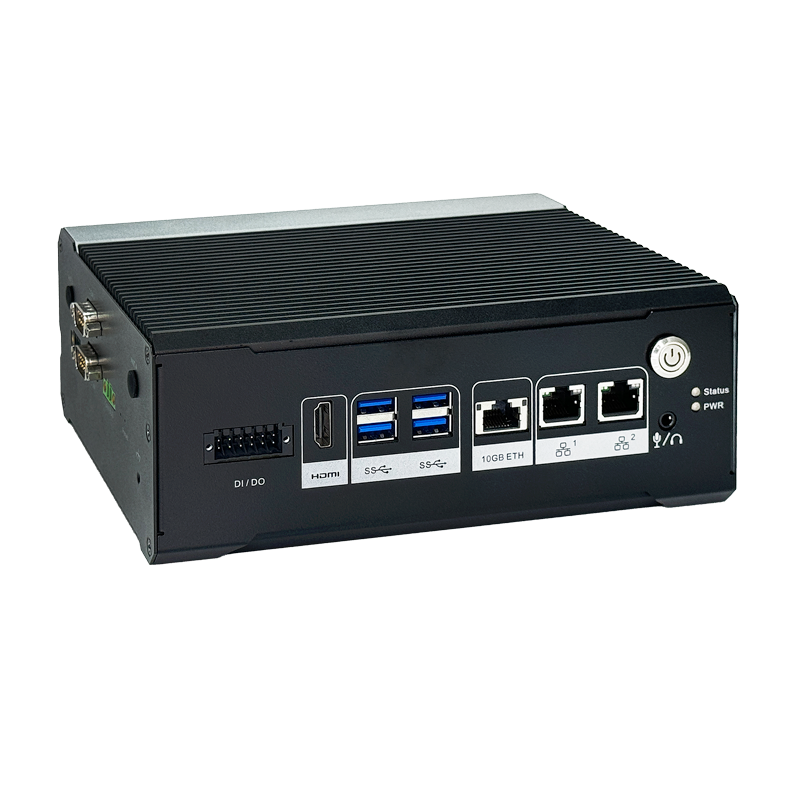

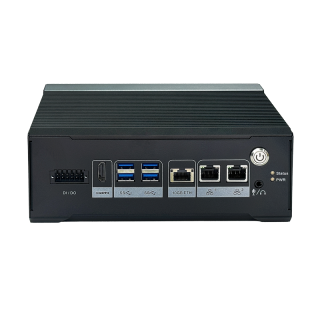

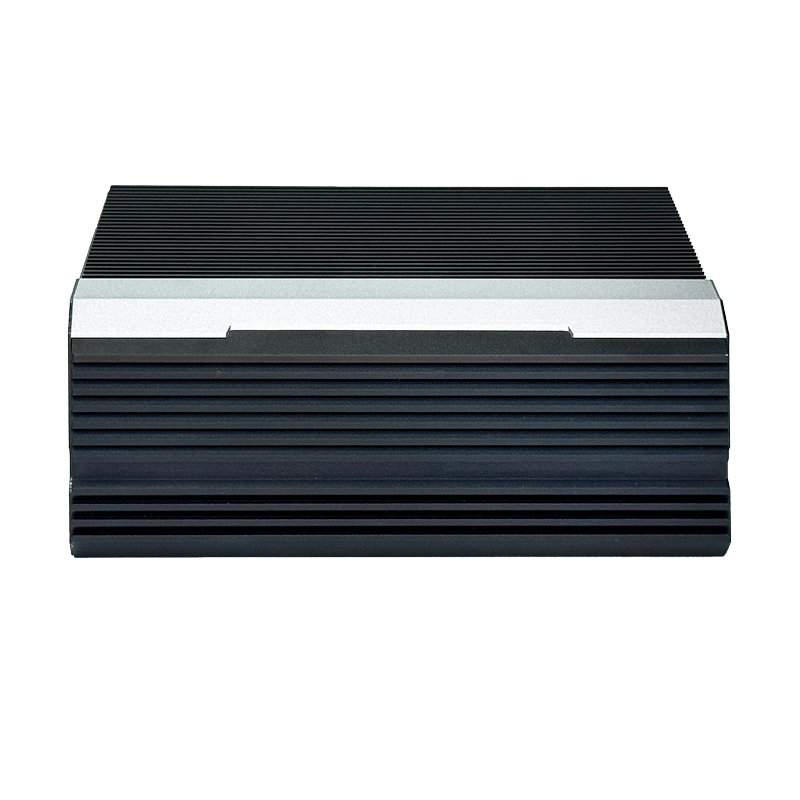

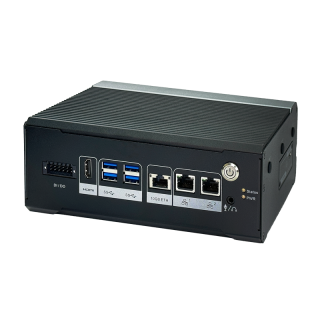

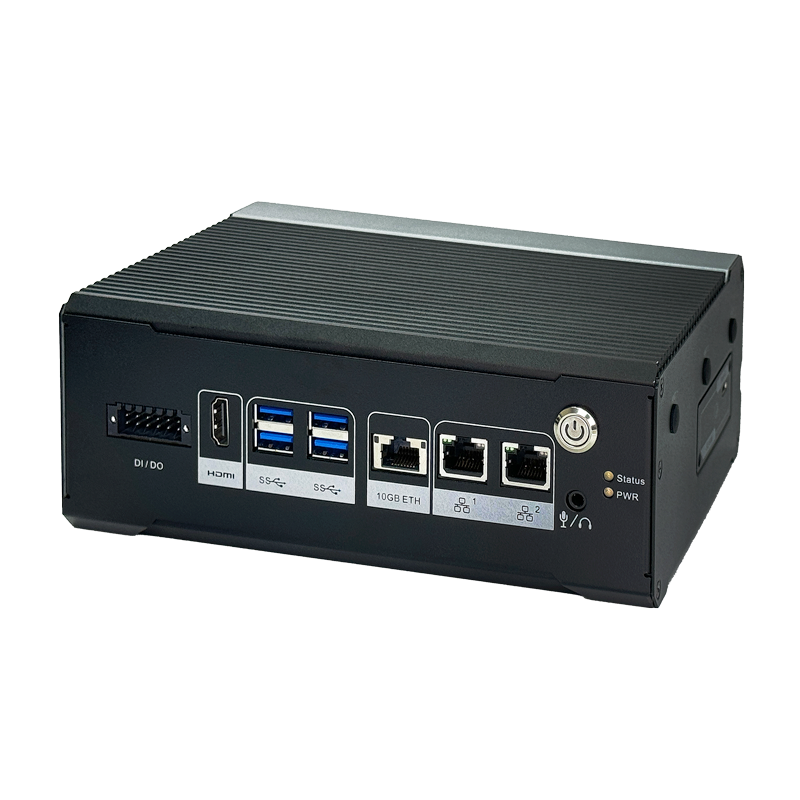

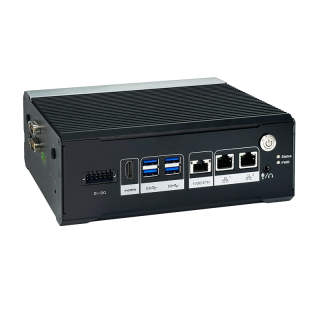

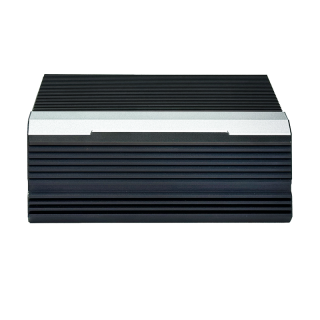

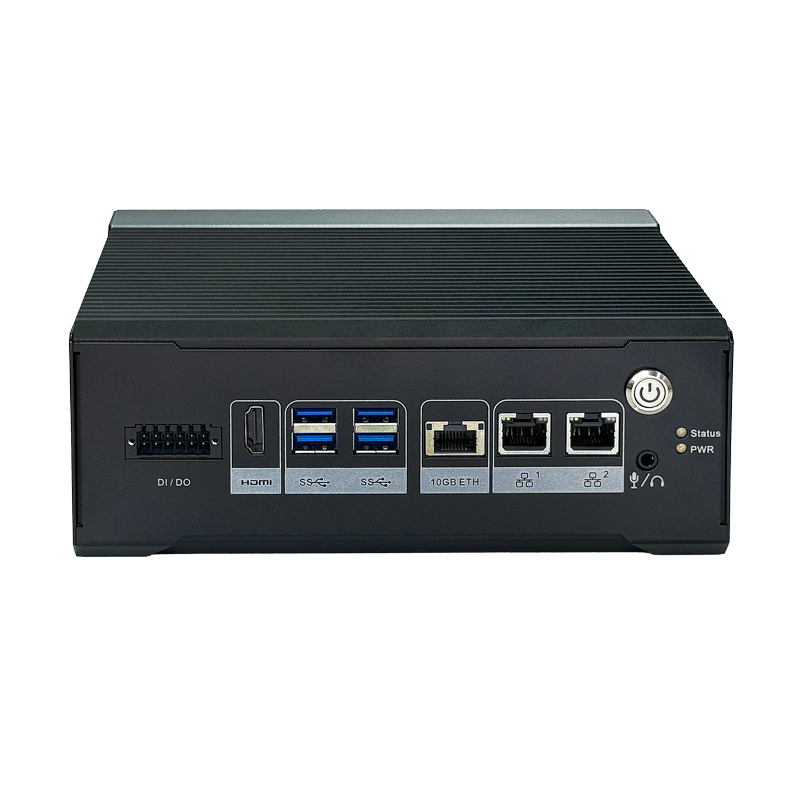

Fanless Embedded Edge AI System with NVIDIA® Jetson Orin™ AGX
• Powered by NVIDIA® Jetson Orin™ AGX Module
• Multiple I/O interface connections for data collection
• GbE LAN, USB 3.2, Series Ports, CAN-FD, HDMI
• Wide range power input 9 ~ 36 VDC
• Multiple I/O interface connections for data collection
• GbE LAN, USB 3.2, Series Ports, CAN-FD, HDMI
• Wide range power input 9 ~ 36 VDC
Specification
System
CPU/GPU
NVIDIA® Jetson Orin™ AGX NVIDIA 8/12-core Arm® Cortex®-A78AE v8.2
Memory
32/64 GB 256-bit LPDDR5 DRAM
Storage
1 x M.2 M-Key 2280, support NVMe
Real time clock
Yes
Indicators
1 x LED indicator (Power)
Wireless
1 x M.2 E-Key 2230, 1 x M.2 B-Key 3052
Operating system
Linux (NVIDIA JetPack 5.1.2 and above)
Power Supply
Power Requirement
9 ~ 36 VDC
Power Consumption
TBD
MTBF (Hours)
--
Environmental and Mechanical
Dimension
195 x 155 x 75 mm (7.67” x 6.1” x 2.95”)
Weight
TBD
Mouting/Installation
Wall Mount
Operating Temperature
-20 ~ 60 °C (-4 ~ 140 °F)
Storge Temperature
-40 ~ 85 °C (-40 ~ 176 °F)
Operating Humidity
10% ~ 95% relative humidity, non-condensing
Certification
Regulations
CE, FCC
Carrier
Planning
Interface
Serial Port
2 x RS-232/422/485 switchable, Terminal Block
CAN Bus
1 x CAN Bus, 3-pin Terminal Block
Ethernet
2 x GbE LAN, RJ45, 1 x 10GbE LAN, RJ45
USB
4 x USB 3.2 Gen1, Type-A, 1 x USB 3.2 Gen1, Type C
DI/DO
8 x Alarm I/O
AI/AO
--
Display
1 x HDMI 2.0-Out
Power Connector
3-pin Terminal Block
Debug Port
1 x Micro USB for console
Expansion Slot
1 x SIM card slot, 1 x PCIe x8 Connector, 1 x MIPI CSI-2 Connector
Other Interface
--
