NVIDIA Jetson T5000 Blackwell GPU + Arm Neoverse V3AE CPU
NVIDIA Jetson T4000 Blackwell GPU + 12-core Arm® Neoverse®-V3AE 64-bitCPU
+
EAC Series | Edge AI Computing Platforms

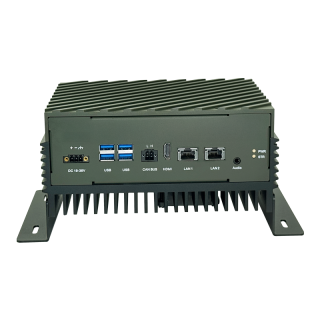

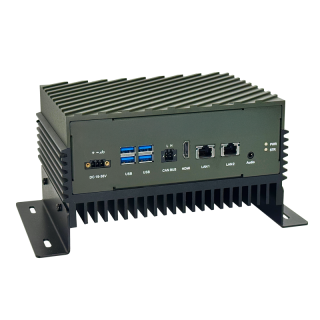

EAC-100T
Robotic Controller with NVIDIA® Jetson Thor™ Module
• Accelerated by NVIDIA® Jetson T5000™ and NVIDIA® Jetson T4000™
• Up to 2070 FP4 TFLOPS of AI compute and 128 GB of memory
• 2 x 5 GbE LAN, 2 x CAN-FD
• 4 x USB 3.2, 1 x Audio (optional)
• Power input 19 ~ 36 VDC
• Up to 2070 FP4 TFLOPS of AI compute and 128 GB of memory
• 2 x 5 GbE LAN, 2 x CAN-FD
• 4 x USB 3.2, 1 x Audio (optional)
• Power input 19 ~ 36 VDC
Specification
System
CPU/GPU
Memory
128 GB (8 x 16 GB) memory with 256-bit LPDDR5X DRAM
Storage
1 x M.2 M-Key 2280, support NVMe
Real time clock
Yes
Indicators
2 x LED indicator (Power/Storage)
Wireless
1 x M.2 E-Key 2230, Wi-Fi/BT
1 x M.2 B-Key 3052, 4G/5G
1 x M.2 B-Key 3052, 4G/5G
Power Supply
Power Requirement
19 ~ 36 VDC
Environmental and Mechanical
Dimension
200 x 145 x 97 mm (7.87” x 5.7” x 3.82”)
Weight
2.8kg
Mouting/Installation
Wall Mount
Operating Temperature
-20 ~ 60 °C (-4 ~ 140 °F)
Storge Temperature
-40 ~ 85 °C (-40 ~ 176 °F)
Operating Humidity
10% ~ 95% relative humidity, non-condensing
Certification
Regulations
CE, FCC
Interface
CAN Bus
2 x CAN-FD
Ethernet
2 x 5 GbE LAN, RJ45
USB
4 x USB 3.2, Type-A (Optional)
Display
1 x HDMI 2.0-Out
Audio
1 x speaker
1 x Mic in (Optional)
1 x Mic in (Optional)
Debug Port
1 x Micro USB
SIM Slot
1 x Dual SIM Card Socket
Expansion Slot
1 x M.2 E-key (2230) for Wi-Fi/BT
1 x M.2 M-key (2280) for NVMe SSD
1 x M.2 B-key (3052) for 4G/5G
1 x M.2 M-key (2280) for NVMe SSD
1 x M.2 B-key (3052) for 4G/5G
Other Interface
Build in IMU, GNSS
Power Connector
3-pin Terminal Block
Software
OS
NVIDIA JetPack™ 7.1
Download
- File
-
Download
