PHX-N1000 Series Edge AI Camera
Edge AI Camera with Exclusive LENSCORE Technology
• Accelerated by NVIDIA Jetson Orin NX or Orin Nano
• Supports LENSCORE Technology (flexible, modular AI camera)
• Interchangeable lenses, including fixed focus and zoom lens options
• Cockpit-style LENSCORE separation design
• Up to 16GB LPDDR5 memory
• Multiple I/O interface connections
• Wide operating temperature range, -20˚C to 70˚C
• Pre-installed AI model examples
• Supports LENSCORE Technology (flexible, modular AI camera)
• Interchangeable lenses, including fixed focus and zoom lens options
• Cockpit-style LENSCORE separation design
• Up to 16GB LPDDR5 memory
• Multiple I/O interface connections
• Wide operating temperature range, -20˚C to 70˚C
• Pre-installed AI model examples
Specification
Type
Camera Type
Flexible, Modular Edge AI Camera
System
CPU
NVIDIA Jetson Orin™ NX / NVIDIA Jetson Orin Nano™
Storage
1x M.2 M-Key slot support NVMe 1x Micro SD Card Slot

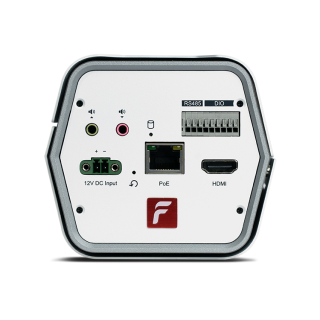

External Interfaces
Ethernet
1x GbE with PoE PD, RJ45
Series
1x RS-485, Terminal Block
Digital I/O
2x Alarm Input, Terminal Block 2x Alarm Output, Terminal Block
Display
1x HDMI 2.0- Output
Audio
1x Mic-in, 1x Line-out
SD Card
1x Micro SD Card Slot
USB
1x USB Type-C for Config
Power Input
1x 12 VDC Power-input, Terminal
Power Button
1x Reset button
LED
1x dual-color LED (Power by DC, Power by PoE)
Expansion
Wireless
1x M.2 E-key 2230
Software
OS
Ubuntu: 22.04 JetPack 6 or Higher
Software
Support Axxonsoft, Solomon-META
SDK/Utiltiy
OBS Studio, Guvcview
General
Dimensions (W x D x H)
100mm x 217.7mm x 88mm
Weight
1.6 kg
Operating Temp.
-20~70°C with Airflow
Mouting/Installation
1/4-20 UNC Screw holes
Storage Temp.
-40~80°C
Storage Humidity.
5% ~ 95%, non-condensing
Protect Rate
N/A
Camera
Image Sensor
ONSEMI AR0234
Pickup Device / Shutter
1/2.6", Global shutter
Resolution
2.3M(1920x1200), CMOS
Lens
3.48mm, Fixed Lens, F1.8
Angle of View (H, V, D)
113.4°, 95.8°, 59.6°
Lens Type
Build
Pixel Size
3.0um x 3.0um
Frame rate (max.)
100fps
Color/Mono
Color
Wide Dynamic Range
WDR(1T)
Video Enhancement
Low Dark Current/Hot Pixels, High Linear Full Well
