EAC Series | Edge AI Computing Platforms

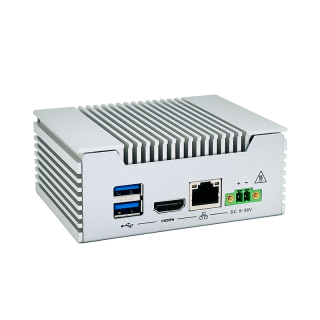

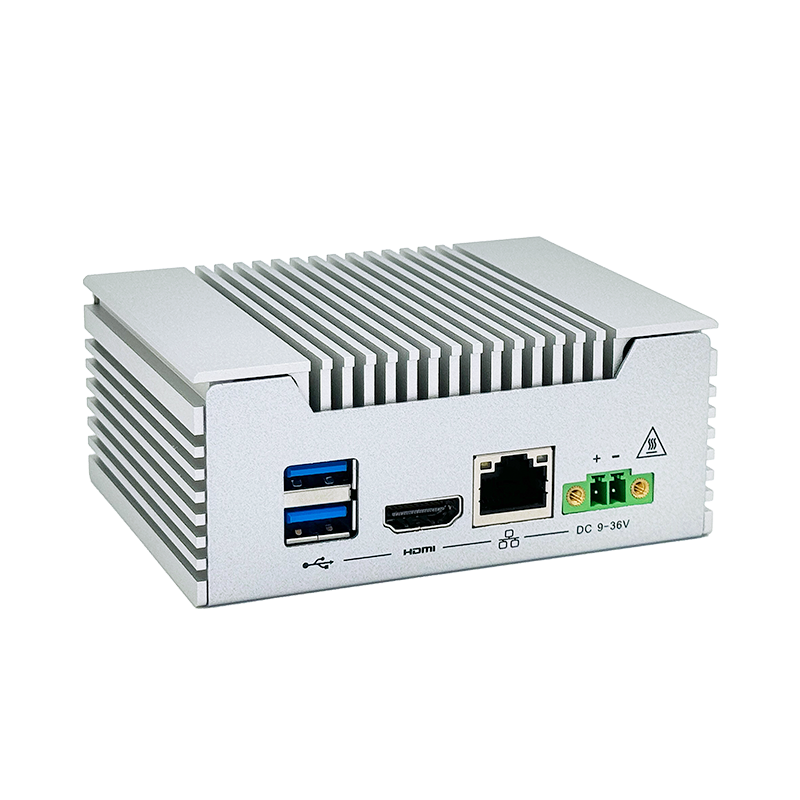

EAC-10N3
Ultra Compact Fanless Embedded Edge AI System
• Powered by NVIDIA® Jetson Orin™ NX
• Multiple I/O interface connections for data collection
• GbE LAN, USB 3.2, Serial Ports, HDMI
• Wide range power input 9 ~ 36 VDC
• Compact, lightweight and conveniently portable AI BOX
• Multiple I/O interface connections for data collection
• GbE LAN, USB 3.2, Serial Ports, HDMI
• Wide range power input 9 ~ 36 VDC
• Compact, lightweight and conveniently portable AI BOX
Specification
System
CPU/GPU
NVIDIA® Jetson Orin™ NX 6/8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
Memory
Onboard 8/16 GB 128-bit LPDDR5
Storage
1 x M.2 M-Key 2242, support NVMe
Real time clock
Yes
Indicators
1 x LED indicator (Power)
Operating system
Linux (NVIDIA JetPack 5.1.2/6.0)
Power Supply
Power Requirement
9 ~ 36 VDC
Power Consumption
TBD
Environmental and Mechanical
Dimension
94.6 x 76 x 28.55 mm (3.72” x 2.99” x 1.12”)
Weight
0.3 kg
Mouting/Installation
Din Rail
Operating Temperature
-20 ~ 60 °C (-4 ~ 140 °F)
Storge Temperature
-40 ~ 85 °C (-40 ~ 176 °F)
Operating Humidity
10% ~ 95% relative humidity, non-condensing
Certification
Regulations
CE, FCC
Carrier
Planning
Interface
Serial Port

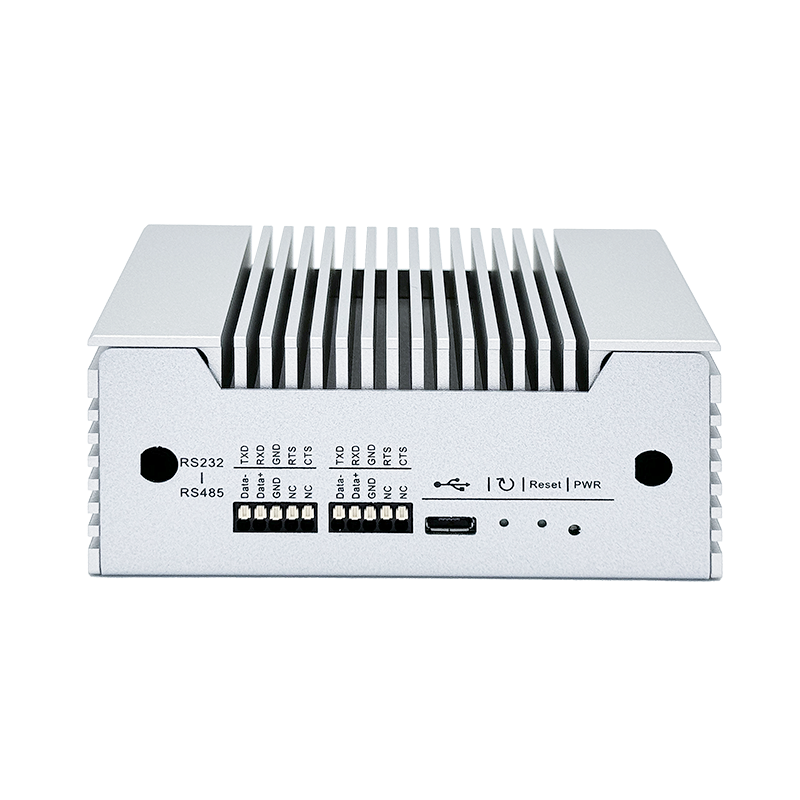

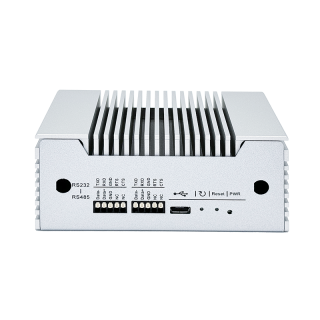

2 x RS-232/485 switchable
Ethernet

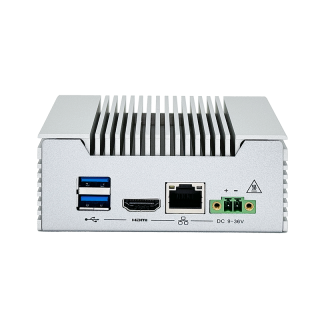

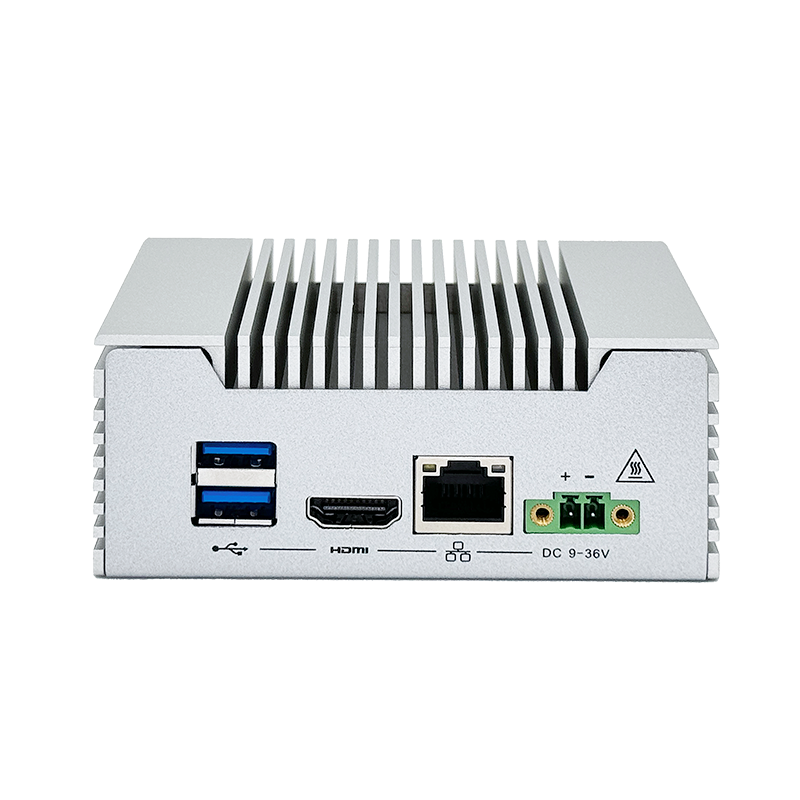

1 x GbE LAN, RJ45
USB
2 x USB 3.2 Gen1, Type-A
Display
1 x HDMI 2.0-Out
Power Connector
2-pin Terminal Block
Debug Port
1 x Micro USB for console
Expansion Slot
1 x MIPI CSI-2 with FPC connector
