eNVP Series | Embedded Edge AI & NVR Systems

eNVP-JNN-AI-UB000

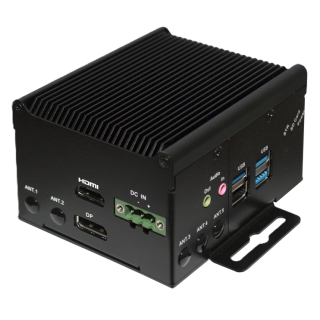

Rugged Embedded Edge AI System with NVIDIA® Jetson Nano™

• Fanless AI edge embedded box PC
• Quad-Core Arm® Cortex®-A57 MPCore processor
• 128-core NVIDIA Maxwell™ GPU
• Onboard 4 GB 64-bit LPDDR4 memory (25.6 GB/s)
• Supports 1 x GbE
• Supports 1 x CAN bus
• Supports 3 x USB 3.0, 1 x USB 2.0
• Supports 1 x Micro USB (for Flash OS)
• Supports 1 x M.2 M-key 2280 (for NVMe SSD)
• Supports 1 x M.2 B-key 3052/3042 (for 5G/4G)
• 1 x Supports UART, 1 x RS-485, 2 x I2C, 2 x SPI, 6 x GPIO, 2 x +5V Output, 2 x +3.3V Output
• 12 VDC input
INQUIRY COMPARE

Specification

System
AI Accelerator
NVIDIA® Jetson Nano™
CPU
Quad-Core Arm® Cortex®-A57 MPCore processor
GPU
128-core NVIDIA Maxwell™ GPU
Memory
Onboard 4 GB 64bit LPDDR4 (25.6 GB/s)
Interface
CAN Bus
1 x CAN bus
Indicators
1 x LED (PWR)
USB
2 x USB 3.0, 2 x USB 2.0
OTG USB
1 x Micro USB (for Flash OS)
DIO
5 x Antenna
Display
1 x HDMI, 1 x DisplayPort
Audio
1 x Audio In/Out
Button
1 x Recovery, 1 x Reset
Power
1 x PWR Input (3-pin terminal block)
COM
--
Others
2 x UART, 1 x RS-485, 2 x I2C, 2 x SPI, 6 x GPIO, 2 x +5V Output, 2 x +3.3 V Output
Storage
Storage
16 GB eMMC 5.1
SATA
--
SD Card
1 x microSD
NVMe SSD
Supported (via Expansion)
Power
Power Supply
12 VDC
Network
Ethernet
1 x GbE
PoE
--
Antenna
5 x ANT.
Wi-Fi/BT
Supported (via Expansion)
4G/5G
Supported (via Expansion)
GPS
--
Expansion
M.2
1 x M.2 M-key 2280, 1 x M.2 B-key 3042/3052
General
Dimensions
114 x 102 x 60.7 mm (4.48” x 4.01” x 2.39”) (with bracket)
Weight
0.65 kg
Operating Temperature
-20 ~ 55 °C (-4 ~ 131 °F), according to IEC60068-2 with 0.5 m/s AirFlow
Storage Temperature
-40 ~ 85 °C (-40 ~ 185 °F)
Storage Humidity
10% ~ 90%, non-condensing
Vibration
MIL-STD-810G, Method 514.7, Category 4, MIL-STD-810G, Method 516.7, Procedure I (Shock)
Certification
CE, FCC Class A, according to EN 55032/55035
