IP camera

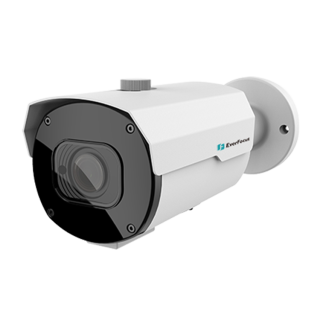

EZN1250-SG (NDAA)
2-Megapixel IR & WDR, Outdoor Bullet Network Camera
2MP Progressive scan CMOS sensor
Equipped with 2.8~12mm motorized lens
Dual-streaming from H.265 / H.264
Supports 3D DNR (Digital Noise Reduction)
Provides True Day/Night functionality with automatic IR filter operation
Extended IR range up to 45m / 148ft.
Supports ONVIF
Weather-proof IP66 rated
Supports PoE and 12VDC
Equipped with 2.8~12mm motorized lens
Dual-streaming from H.265 / H.264
Supports 3D DNR (Digital Noise Reduction)
Provides True Day/Night functionality with automatic IR filter operation
Extended IR range up to 45m / 148ft.
Supports ONVIF
Weather-proof IP66 rated
Supports PoE and 12VDC
Specification
Camera
Pickup Device
1/2.7", 2.0 megapixel, progressive scan, CMOS
Lens
2.8-12mm, motorized lens
FOV
H:107.85°（W）-34.6°（T）V:55.31°（W）-19.5°（T）D:135.5°（W）-39.8°（T）
F No.
1.8-3.3
Minimum Illumination
Color 0.05lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON
Day/Night
IR cut filter with auto switch（Day/Night/Auto/Schedule）
Shutter
1/5 ~ 1/20000s
IR Distance
up to 45m / 148ft
S/N Ratio
≥ 50db (AGC Off)
General
Audio
1 input (RCA), 1 output (RCA)
SD Card Slot
Not supported
Alarm Input/Output
Supported,1 input, 1 output
Reset Button
Supported
Connector
RJ-45
Power Supply
DC 12V±25%, PoE (IEEE 802.3af)
Power over Ethernet
Power consumption: 7W max
Max Power Consumption
DC 12V±25%, PoE (IEEE 802.3af)
Interface
RJ-45
Vandal Resistance
Not supported
Operating Temperature
-30～+55°C
Dimensions (Φ) x (H)
Ø87.4x242.12mm
Weight
appr 830g
Weather Resistance
IP66
Humidity
≤ 95% RH
Certificates
CE, FCC, RoHS
Video
Video Compression
H.265/H.264
Frame Rate
25fps / 30fps
Event Trigger
Motion, I/O
Triple Streams
Supported
3DNR
Supported
WDR
D-WDR
AWB
Supported
Network
Supported Protocols
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,SMTP,NTP,UPnP,SNMP,HTTPS,FTP
Password Protection
Supported
Notification
Email Notification
Download
- File
-
Download
