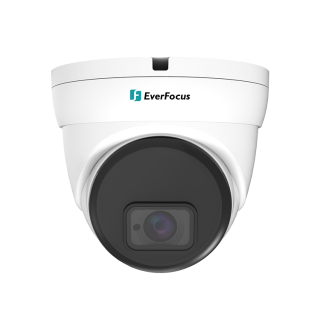

IP camera
EBN2540-SG [Project-Based] MoQ Required
5-Megapixel IR & WDR, Outdoor Ball Network Camera
• 5MP Progressive scan CMOS sensor
• Equipped with 3.6mm fixed lens
• Triple-streaming from H.265 / H.264
• Supports 3D DNR (Digital Noise Reduction)
• Provides True Day/Night functionality with automatic IR filter operation
• Extended IR range up to 30m / 98ft.
• Supports ONVIF
• Support video analytics
• Weather-proof IP66 rated
• Supports PoE and 12VDC
• Equipped with 3.6mm fixed lens
• Triple-streaming from H.265 / H.264
• Supports 3D DNR (Digital Noise Reduction)
• Provides True Day/Night functionality with automatic IR filter operation
• Extended IR range up to 30m / 98ft.
• Supports ONVIF
• Support video analytics
• Weather-proof IP66 rated
• Supports PoE and 12VDC
Specification
Camera
Pickup Device
1/2.7", 5.0 megapixel, progressive scan, CMOS
Lens
3.6mm, fixed lens
FOV
Horizontal:79.9°, Vertical: 56.6°, Diagonal: 106.79°
F No.
1.6±10%
Minimum Illumination
Color: 0.05Lux (F1.6, AGC ON) 0Lux with IR
Day/Night
IR cut filter with auto switch（Day/Night/Auto/Schedule）
Shutter
1/5 ~ 1/20000s
IR Distance
Up to 30m
S/N Ratio
≥ 39db (AGC Off)
General
Audio
Built-in microphone
SD Card Slot
Micro SD slot, up to 256GB
Reset Button
Supported
Power Supply
DC12V
Power over Ethernet
POE(IEEE802.3af)
Max Power Consumption
7W
Operating Temperature
-30～+60°C
Dimensions (Φ) x (H)
Ø100x90mm
Weight
appr 420g
Weather Resistance
IP66
Humidity
less than ≤ 95% RH
Certificates
CE, FCC, RoHS
Video
Video Compression
H.265/H.264
Frame Rate
Mainstream 5MP(2592×1944),4MP(2592x1520) 3MP(2304x1296),1080P(1920x1080) 960P(1280x960),720P(1280x720) substream 720P(1280x720),VGA(640x480),QVGA(320x240) Mobilestream VGA(640x480), QVGA（320x240）
Triple Streams
Supported
AGC
Supported
3DNR
Supported
WDR
WDR(120db)
AWB
Supported
Network
Supported Protocols
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP
Password Protection
Supported
