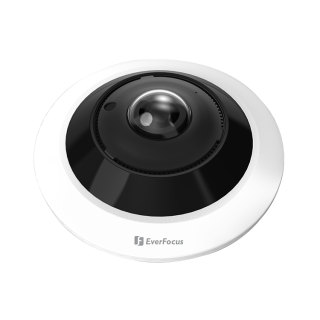

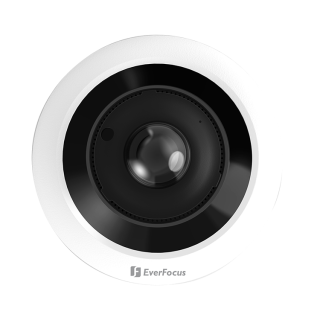

IP camera
EFN1980-SG
12 Megapixel IR & DWDR Fisheye Camera 360° Panoramic View
• 12 MP progressive scan CMOS sensor
• Equipped with 1.6mm lens with 360° angle of view
• Multi-streaming from H.265 / H.264
• Provides True Day/Night functionality with automatic IR filter operation
• Extended IR range up to 10m / 32.8ft with 3 LEDs (depends on scene IR reflectivity)
• Supports D-WDR
• Supports Two way audio
• Supports ONVIF (Profile S, Profile G)
• Supports micro SD card (up to 256GB)
• Supports live monitoring via mobile Apps (iOS & Android)
• Supports PoE and 12VDC
• Weather-proof IP66 rated
• Equipped with 1.6mm lens with 360° angle of view
• Multi-streaming from H.265 / H.264
• Provides True Day/Night functionality with automatic IR filter operation
• Extended IR range up to 10m / 32.8ft with 3 LEDs (depends on scene IR reflectivity)
• Supports D-WDR
• Supports Two way audio
• Supports ONVIF (Profile S, Profile G)
• Supports micro SD card (up to 256GB)
• Supports live monitoring via mobile Apps (iOS & Android)
• Supports PoE and 12VDC
• Weather-proof IP66 rated
Specification
Camera
Pickup Device
12 MP progressive scan CMOS sensor
Lens
1.6mm lens
FOV
360°
F No.
2.0 ± 5%
Minimum Illumination
Color: 0.01Lux @ F1.6 (AGC On); B/W: 0Lux @ IR On
Day/Night
True Day/Night with ICR
Shutter
1/5 ~ 1/20,000s
IR Distance
10m / 32.8ft
IR LED
3 units (SMD)
S/N Ratio
39.5db (AGC Off)
General
Audio
Supported; Build-in Microphone x1, Speaker x1
SD Card Slot
Supported; Micro SD/SDHC/SDXC slot, up to 256GB
Alarm Input/Output
Supported; 1 input / 1 output
Reset Button
Supported
Connector
DC Jack, RJ-45
Power Supply
12VDC
Power over Ethernet
PoE IEEE802.3af (Class 3)
Max Power Consumption
12VDC ≤ 9.6W / PoE 3.8-9.6W
Interface
RJ-45 10M/100M x 1
Operating Temperature
-30°C ~ 55°C / -22°F ~ 131°F
Dimensions (Φ) x (H)
120 x 56mm / 4.68” x 2.18”
Weight
400g / 0.88lb
Weather Resistance
IP66
Humidity
≤95% not condensing
Certificates
CE, FCC, RoHS
Video
Video Compression
H.265 / H.264
Frame Rate
15fps
Triple Streams
Supported
Video Analytics
Not supported
AGC
Supported
WDR
D-WDR
AWB
Supported
Network
Supported Protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
