IP camera
EHN1250-SG (NDAA) [Project-Based] MoQ Required

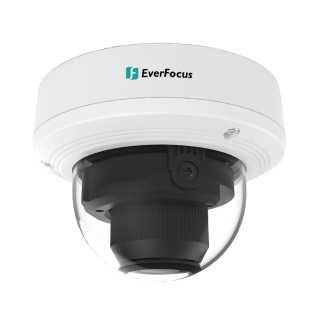

2-Megapixel IR & WDR, Outdoor Dome Network Camera
• 2MP Progressive scan CMOS sensor
• Equipped with 2.8~12mm motorized lens
• Dual-streaming from H.265 / H.264
• Supports 3D-DNR (Digital Noise Reduction)
• Provides True Day/Night functionality with automatic IR filter operation
• Extended IR range up to 45m / 148ft.
• Supports ONVIF
• Weather-proof IP66 rated
• Supports PoE and 12VDC
• Equipped with 2.8~12mm motorized lens
• Dual-streaming from H.265 / H.264
• Supports 3D-DNR (Digital Noise Reduction)
• Provides True Day/Night functionality with automatic IR filter operation
• Extended IR range up to 45m / 148ft.
• Supports ONVIF
• Weather-proof IP66 rated
• Supports PoE and 12VDC
Specification
Camera
Pickup Device
1/2.7", 2.0 megapixel, progressive scan, CMOS
Lens
2.8-12mm, motorized lens, F1.8-3.3
FOV
H:107.85°（W）-34.6°（T）V:55.31°（W）-19.5°（T）D:135.5°（W）-39.8°（T）
F No.
1.2m（W/T）
Minimum Illumination
Color 0.05lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON
Day/Night
IR cut filter with auto switch（Day/Night/Auto/Schedule）
Shutter
1/5 ~ 1/20000s
IR Distance
Up to 45m (148ft) IR range
General
Audio
1 input (RCA), 1 output (RCA)
SD Card Slot
Micro SD slot, up to 256GB
Alarm Input/Output
1 input, 1 output
Reset Button
Supported
Connector
DC Jack, RJ-45
Power Supply
DC 12V±25%, PoE (IEEE 802.3af)
Power over Ethernet
PoE (IEEE 802.3af)
Max Power Consumption
Power consumption: 7W max
Operating Temperature
-30～+55°C/less than ≤ 95% RH
Dimensions (Φ) x (H)
Ø148.7x109mm
Weight
appr 960g
Weather Resistance
IP66
Video
Video Compression
H.265/H.264
Frame Rate
Main Stream 1080P(1920x1080) Sub Steam VGA(640x480)
Triple Streams
Supported
Video Output
Supported
Video Analytics
Motion detection(8 Level)
AGC
Supported
3DNR
Supported
WDR
Supported
AWB
Auto/Manual/Indoor
Network
Supported Protocols
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,SMTP,NTP,UPnP,SNMP,HTTPS,FTP
Password Protection
Supported
Download
- File
-
Download
