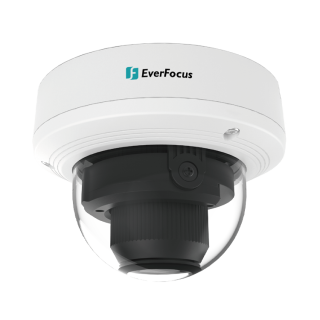

IP camera
EHN2550-SG (NDAA)
5-Megapixel IR & WDR, Outdoor Dome Network Camera
• 5MP Progressive scan CMOS sensor
• Equipped with 2.8~12mm motorized lens
• Triple-streaming from H.265 / H.264
• Supports 3D DNR (Digital Noise Reduction)
• Provides True Day/Night functionality with automatic IR filter operation
• Extended IR range up to 45m / 148ft.
• Support video analytics
• Supports ONVIF
• Weather-proof IP66 rated
• Supports PoE and 12VDC
• Equipped with 2.8~12mm motorized lens
• Triple-streaming from H.265 / H.264
• Supports 3D DNR (Digital Noise Reduction)
• Provides True Day/Night functionality with automatic IR filter operation
• Extended IR range up to 45m / 148ft.
• Support video analytics
• Supports ONVIF
• Weather-proof IP66 rated
• Supports PoE and 12VDC
Specification
Camera
Pickup Device
5MP Progressive scan CMOS sensor
Lens
2.8~12mm motorized lens
FOV
H: 101° ~ 32°, V: 71° ~ 23°, D: 129° ~ 40°
F No.
1.4 (W) ~ 3.1(T)
Minimum Illumination
Color 0.05lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON
Day/Night
IR cut filter with auto switch（Day/Night/Auto/Schedule）
Shutter
1/5 ~ 1/20000s
IR Distance
45m / 148ft.
S/N Ratio
≥ 39db (AGC Off)
General
Audio
Supported; 1 input / 1 output (RCA)
SD Card Slot
Supported; Micro SD slot, up to 256GB
Alarm Input/Output
Supported; 1 input / 1 output
Reset Button
Supported
Connector
DC Jack, RJ-45
Power Supply
12VDC
Power over Ethernet
PoE IEEE802.3af (Class 3)
Max Power Consumption
12VDC ≤9W / PoE 7.4W
Operating Temperature
-30°C ~ 55°C / -22°F ~ 131°F
Dimensions (Φ) x (H)
148.7 x 109mm
Weight
960g
Weather Resistance
IP66
Video
Video Compression
H.265 / H.264
Frame Rate
25fps / 30fps
Triple Streams
Supported
Video Output
Supported
Video Analytics
Motion detection, Pedestrian & Vehicle Detection, Face Detection, Perimeter Intrusion Detection, Line Crossing Detection, Goods Lost Legacy, Cross counting, Heat Map, Crowd Density Detection, Queue Length Detection
AGC
Supported
3DNR
Supported
WDR
WDR(120db)
AWB
Auto/Manual/Indoor
Network
Supported Protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
Password Protection
Supported
