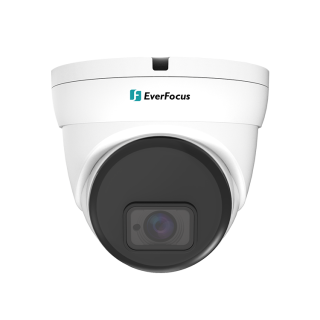

IP camera
EBN1240-SG (NDAA)
2-Megapixel IR & WDR, Outdoor Ball Network Camera
• 2MP Progressive scan CMOS sensor
• Equipped with 3.6mm fixed lens
• Multi-streaming from H.265 / H.264
• Supports D-WDR
• Provides True Day/Night functionality with automatic
IR filter operation
• Extended IR range up to 30m / 98ft with 18 LEDs
(depends on scene IR reflectivity)
• Supports ONVIF (Profile S, Profile G)
• Weather-proof IP66 rated
• Supports live monitoring via mobile Apps (iOS &
Android)
• Supports PoE and 12VDC
• Equipped with 3.6mm fixed lens
• Multi-streaming from H.265 / H.264
• Supports D-WDR
• Provides True Day/Night functionality with automatic
IR filter operation
• Extended IR range up to 30m / 98ft with 18 LEDs
(depends on scene IR reflectivity)
• Supports ONVIF (Profile S, Profile G)
• Weather-proof IP66 rated
• Supports live monitoring via mobile Apps (iOS &
Android)
• Supports PoE and 12VDC
Specification
Camera
Pickup Device
2MP Progressive scan CMOS sensor
Lens
3.6mm fixed lens
FOV
H:86.1°, V:46°, D:104°
F No.
2.3±10%
Minimum Illumination
Color 0.05lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON
Day/Night
IR cut filter with auto switch (Day/Night/Auto/Schedule)
Shutter
1/5 ~ 1/20,000s
IR Distance
30m / 98ft
IR LED
18 units (SMD)
S/N Ratio
40db (AGC Off)
General
SD Card Slot
Micro SD slot, up to 256GB
Alarm Input/Output
Not supported
Reset Button
Supported
Connector
DC Jack, RJ-45
Power Supply
12VDC
Power over Ethernet
PoE IEEE802.3af (Class 3)
Max Power Consumption
12VDC ≤7W / PoE 5.1W
Interface
RJ-45 10M/100M x 1
Operating Temperature
-30°C ~ +60°C
Dimensions (Φ) x (H)
Ø100 x 90mm
Weight
420g
Weather Resistance
IP66
Humidity
≤95% not condensing
Certificates
CE, FCC, RoHS
Video
Video Compression
H.265 / H.264
Frame Rate
Main stream 1080P(1920x1080) Sub stream VGA(640x480)
Event Trigger
Motion, I/O
Triple Streams
Not supported (supports dual streams)
Video Output
Not supported
AGC
Supported
3DNR
Supported
WDR
D-WDR
AWB
Supported
Image Settings
Flip, Saturation, Brightness, Contrast, Hue, Sharpness
Network
Supported Protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
Password Protection
Supported
Notification
Email Notification
