IP camera
EMN2560-SG [Project-Based] MoQ Required

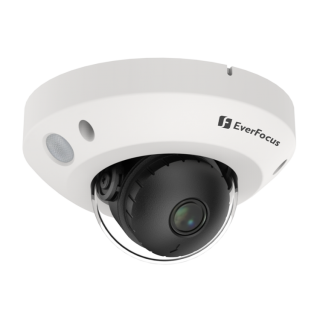

Mini fixed dome IP Cam
• 5MP Progressive scan CMOS sensor
• Equipped with 2.8mm fixed lens
• Triple-streaming from H.265 / H.264
• Supports 3D DNR (Digital Noise Reduction)
• IR filter operation
• Extended IR range up to 30m / 98ft.
• Supports ONVIF
• Weather-proof IP66 rated
• Equipped with 2.8mm fixed lens
• Triple-streaming from H.265 / H.264
• Supports 3D DNR (Digital Noise Reduction)
• IR filter operation
• Extended IR range up to 30m / 98ft.
• Supports ONVIF
• Weather-proof IP66 rated
Specification
Camera
Pickup Device
5MP Progressive scan CMOS sensor
Lens
2.8mm fixed lens
FOV
Horizontal: 110.6°, Vertical: 58.7°, Diagonal: 133.1°
F No.
1.6
Minimum Illumination
Color 0.05lux @ F1.2 (AGC ON) ; B/W 0 lux @ IR ON
Day/Night
IR cut filter with auto switch (Day/Night/Auto/Schedule）
Shutter
1/5 ~ 1/20000s
IR Distance
Up to 30m
S/N Ratio
≥ 39db (AGC Off)
General
SD Card Slot
Micro SD slot, up to 256GB
Alarm Input/Output
Not supported
Max Power Consumption
3W (IR OFF), 4.5W (IR ON)
Interface
RJ45(10/100BASE-T)
Operating Temperature
-30~+55°C / less than ≤ 95% RH
Dimensions (Φ) x (H)
Ø115X 64mm
Weight
appr. 265g
Weather Resistance
IP66
Video
Video Compression
H.265/H.264
Frame Rate
50Hz: 25fps@5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA 60Hz: 30fps@5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA
Event Trigger
Motion
Triple Streams
Triple-streaming from H.265 / H.264
AGC
Supported
3DNR
Supported
WDR
T-WDR(120 db)
AWB
Supported
Image Settings
Flip/Rotation
Network
Supported Protocols
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
Password Protection
Supported
Download
- File
-
Download
