Analog camera

EHA2580 [Project-Based] MoQ Required

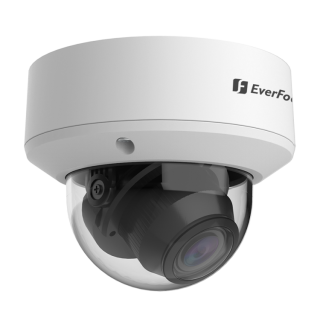

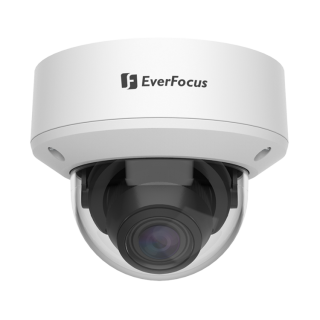

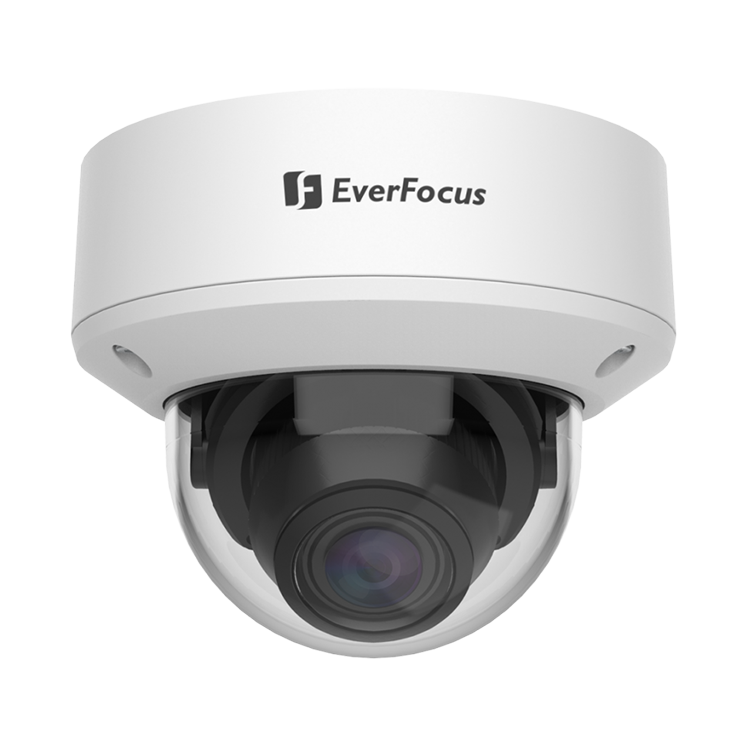

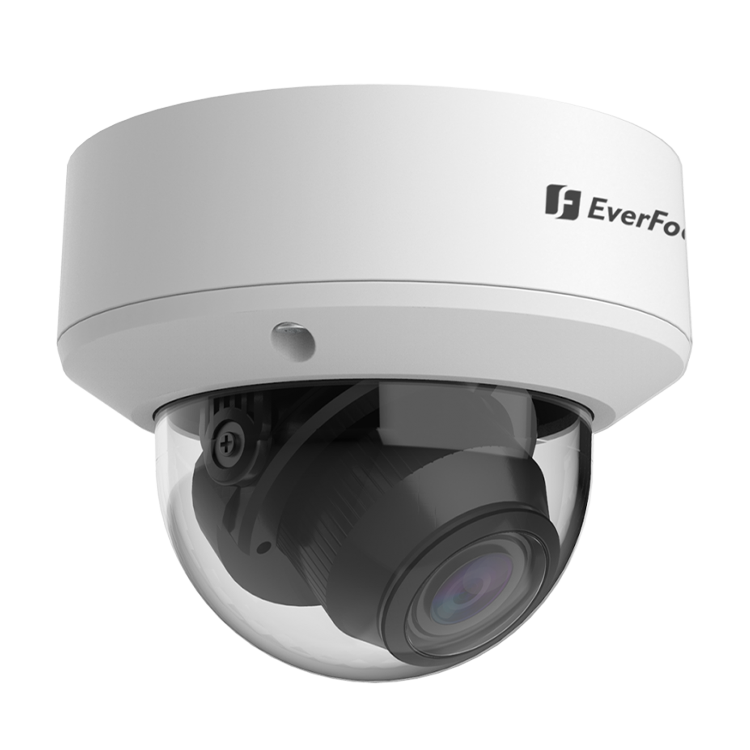

5-Megapixel Day/Night Outdoor IR Dome Camera

• 5MP CMOS sensor, delivering amazing high sensitivity
• Varifocal 2.8-12mm with ICR to capture the desired field of view
• Extended IR range of up to 35m / 114ft. with 4 LEDs (depends on scene IR reflectivity)
• The flexible angle viewing with its 3-Axis rotation design allows wall or ceiling mounting
• IP66-rated with metal housing
• Supports UTC function: Control camera OSD settings directly from DVR end
INQUIRY COMPARE

Specification

Camera
Pickup Device
5MP CMOS sensor
Day/Night
Supported
IR Distance
Up to 35m / 114ft. (Depends on scene IR reflectivity)
IR LED
4 Units
S/N Ratio
≥39dB
Sync Mode
Internal
UTC Function
Supported
DNR
Off / Middle / High / Low
SensUp
Off / x2 / x4 / x8 / x16 / x32
Mirror / Flip
Off / On
System Format
NTSC / PAL (switchable via OSD)
Effective Pixels
2608 (H) x 1960 (V)
Scanning System
Progressive Scan
Electronic Shutter
1/30s~1/30,000s
Gamma Correction
0.45 / 0.55 / 0.65 / 0.75
Lens Type
Varifocal 2.8-12mm with ICR, F1.8-3.3
FOV (D x H x V)
133~40° x 107~34° x 54~19°
Sensitivity
0 Lux with IR On
General
OSD Languages
English
Power Supply
12VDC, 550mA
Power over Ethernet
IR Off ≤1W, IR On ≤4W
Operating Temperature
-10°C ~ 50°C / 14°F ~ 122°F
Weight
930g / 2lb
Weather Resistance
IP66 Weather Resistant
Humidity
Less than 90%
Certificates
CE, FCC, RoHS
Motion Detection
Supported
Privacy Mask
Supported
Dimensions
Ø148.7 x 109mm / 5.85" x 4.29"
Video
Video Format
AHD / TVI / CVI / CVBS *CVBS only support PAL
AGC
Auto
BLC
Off /Auto
White Balance
Auto

Download
