Analog camera
EBA1541 [Project-Based] MoQ Required

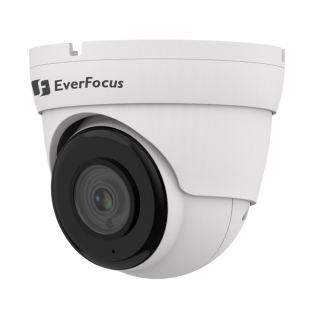

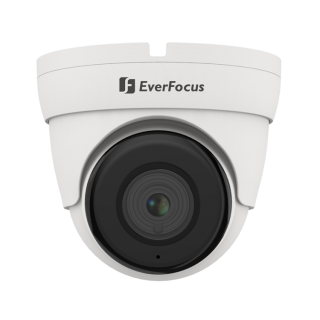

5-Megapixel True Day/Night Outdoor IR Ball Camera
• 5Mp CMOS sensor, with high flexibility and performance for astounding image
• 2.8mm fixed lens with ICR to capture the desired field of view
• Extended IR range of up to 20m / 66ft.
• The flexible angle viewing with its 3-Axis rotation design allows wall or ceiling mounting
• IP66-rated with metal housing
• Built-in Microphone (Audio over Coax)
• Supports UTC function: Control camera OSD settings directly from DVR end
• 2.8mm fixed lens with ICR to capture the desired field of view
• Extended IR range of up to 20m / 66ft.
• The flexible angle viewing with its 3-Axis rotation design allows wall or ceiling mounting
• IP66-rated with metal housing
• Built-in Microphone (Audio over Coax)
• Supports UTC function: Control camera OSD settings directly from DVR end
Specification
Camera
Pickup Device
1/2.7” Progressive scan, CMOS
Day/Night
IR Cut Filter with auto switch (Auto/Color/B&W)
IR Distance
Up to 20m / 66ft
IR LED
18 Units
S/N Ratio
≥39dB
Sync Mode
Internal
UTC Function
Supported
DNR
Level 1-9
Mirror / Flip
Off / On (V-Flip /Rotate)
System Format
NTSC / PAL (switchable via OSD)
Effective Pixels
2608 (H) x 1960 (V)
Scanning System
Progressive Scan
Electronic Shutter
1/30s ~ 1/30000s
Gamma Correction
Supported 0.45
Lens Type
2.8mm lens with ICR, F1.6
FOV (D x H x V)
134° x 58.8° x 111.4°
General
OSD Languages
English
Power Supply
12VDC
Max Power Consumption
IR Off ≤1W, IR On ≤4W
Operating Temperature
-20°C ~ 50°C / -4°F ~ 122°F
Weight
391g / 0.86lb
Weather Resistance
IP66 Weather Resistant
Humidity
Less than 90%
Motion Detection
Supported
Privacy Mask
Supported
Dimensions
Ø 100mm x 90mm
Video
Video Format
AHD / TVI / CVI / CVBS *CVBS only support PAL
Frame Rate
5MP@ 20fps; 50Hz: 25fps/1920*1080; 25fps/4MP 60Hz: 30fps/1920*1080; 30fps/4MP
AGC
Height/Middle/Low
BLC
Level/Area/Default/Return
White Balance
Auto
Download
- File
-
Download
