Analog camera
EBA1241

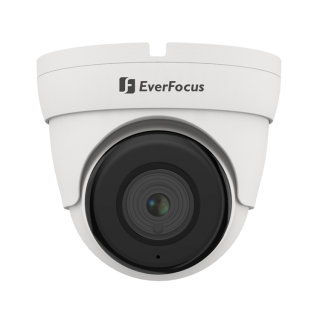

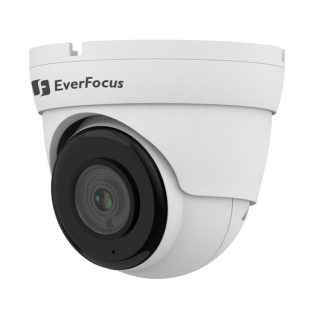

2-Megapixel True Day/Night Outdoor IR Ball Camera
• 1080p Full HD CMOS sensor, with high flexibility and performance for astounding image
• 2.8mm fixed lens with ICR to capture the desired field of view
• Extended IR range of up to 20m / 66ft.
• D-WDR to improve the visibility under high contrast scene
• The flexible angle viewing with its 3-Axis rotation design allows wall or ceiling mounting
• IP66-rated with metal housing
• Built-in Microphone (Audio over Coax)
• Supports UTC function: Control camera OSD settings directly from DVR end
• 2.8mm fixed lens with ICR to capture the desired field of view
• Extended IR range of up to 20m / 66ft.
• D-WDR to improve the visibility under high contrast scene
• The flexible angle viewing with its 3-Axis rotation design allows wall or ceiling mounting
• IP66-rated with metal housing
• Built-in Microphone (Audio over Coax)
• Supports UTC function: Control camera OSD settings directly from DVR end
Specification
Camera
Pickup Device
1/3”,2.0Megapixel,Progressive scan, CMOS
Minimum Illumination
Color 0.08lux @ F2.0(AGC ON) ; B/W 0 lux @ IR ON
Day/Night
IR Cut Filter with auto switch (Auto/Color/B&W)
IR Distance
Up to 20m / 66ft
IR LED
18 Units
S/N Ratio
≥36dB
Sync Mode
Internal
UTC Function
Supported
DNR
Level 1-9
DWDR
Off/On
Mirror / Flip
Off / On (V-Flip /Rotate)
System Format
NTSC / PAL (switchable via OSD)
Effective Pixels
1920 (H) x 1080 (V)
Scanning System
Progressive Scan
Electronic Shutter
1/30s ~ 1/30000s
Gamma Correction
Supported 0.45
Lens Type
2.8mm lens with ICR, F2.0
FOV (D x H x V)
104.37° x 88.24° x 48.71°
General
OSD Languages
English
Power Supply
12VDC
Max Power Consumption
IR Off ≤0.5W, IR On ≤3.5W
Operating Temperature
-20°C ~ 50°C / -4°F ~ 122°F
Dimensions (Φ) x (H)
Ø 100mm x 90mm
Weight
391g / 0.86lb
Weather Resistance
IP66 Weather Resistant
Humidity
Less than 90%
Certificates
CE, FCC, RoHS2.0
Motion Detection
Supported
Privacy Mask
Supported
Video
Video Format
AHD / TVI / CVI / CVBS
Frame Rate
50Hz: 25fps/1920*1080; 60Hz: 30fps/1920*1080
AGC
High/Middle/Low
BLC
Level/Area/Default/Return
White Balance
Auto
