Analog camera
EZA1281

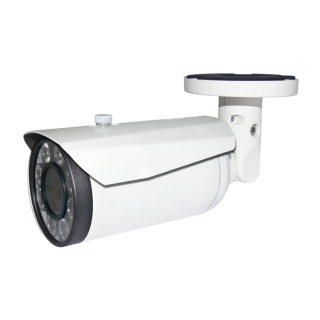

2-Megapixel True Day/Night Outdoor IR Bullet Camera
• 1/2.8” 2.1 Mega-pixel Sony CMOS , delivering amazing high sensitivity
• Varifocal 2.8-12mm with ICR to capture the desired field of view
• Extended IR range of up to 40m / 131ft. with 8 LEDs (depends on scene IR reflectivity)
• D-WDR to improve the visibility under high contrast scene
• IP66-rated with metal housing
• The flexible angle viewing with its 3-Axis rotation design allows wall or ceiling mounting
• Supports dual power (12VDC / 24VAC)Supports UTC function: Control camera OSD settings directly from DVR end
• Varifocal 2.8-12mm with ICR to capture the desired field of view
• Extended IR range of up to 40m / 131ft. with 8 LEDs (depends on scene IR reflectivity)
• D-WDR to improve the visibility under high contrast scene
• IP66-rated with metal housing
• The flexible angle viewing with its 3-Axis rotation design allows wall or ceiling mounting
• Supports dual power (12VDC / 24VAC)Supports UTC function: Control camera OSD settings directly from DVR end
Specification
Camera
Pickup Device
1/2.8” 2.1 Mega-pixel Sony CMOS
Minimum Illumination
Color：0.0001Lux（F1.6,AGC ON） 0Lux with IR
Day/Night
IR cut filter with auto switch (Auto / Color / B&W / Extern)
IR Distance
Up to 40m / 131ft. (Depends on scene IR reflectivity)
IR LED
8 Units
S/N Ratio
≥54dB
Sync Mode
Internal
UTC Function
Supported
DNR
Off / Middle / High / Low
DWDR
OFF/ON
SensUp
AUTO
Mirror / Flip
Off / On
System Format
NTSC / PAL (switchable via OSD)
Effective Pixels
1920 (H) x 1080 (V)
Scanning System
Progressive Scan
Electronic Shutter
1/25-1/50,000S
Gamma Correction
0.45
Resolution
50Hz：25fps/1920X1080 25fps/1280X720 60Hz：30fps/1920X1080 30fps/1280X720
Lens Type
2.8-12mm Varifocal IR Lens
FOV (D x H x V)
110~45° x 106~40° x 57~23°
General
OSD Languages
English / Simplified Chinese / Traditional Chinese / Japanese / Korean / Portuguese
Power Supply
Dual Power (12VDC/24VAC)
Power over Ethernet
550mA (MAX)
Operating Temperature
550mA (MAX) Operating -20°C ~ 50°C / 14°F ~ 122°F
Weight
720g （25.4oz）
Weather Resistance
IP66 Weather Resistant
Humidity
Less than 95%
Certificates
CE, FCC, RoHS
Motion Detection
Supported
Privacy Mask
Supported
Dimensions
231(W) x 84(H) x 110(D)mm / 9.1" x 3.3" x4.3"
Video
Video Format
AHD / TVI / CVI / CVBS
AGC
Auto
BLC
Off / BLC / HLC / WDR
White Balance
ATW
