NDAA / TAA
SNC-8DFR(Preliminary)

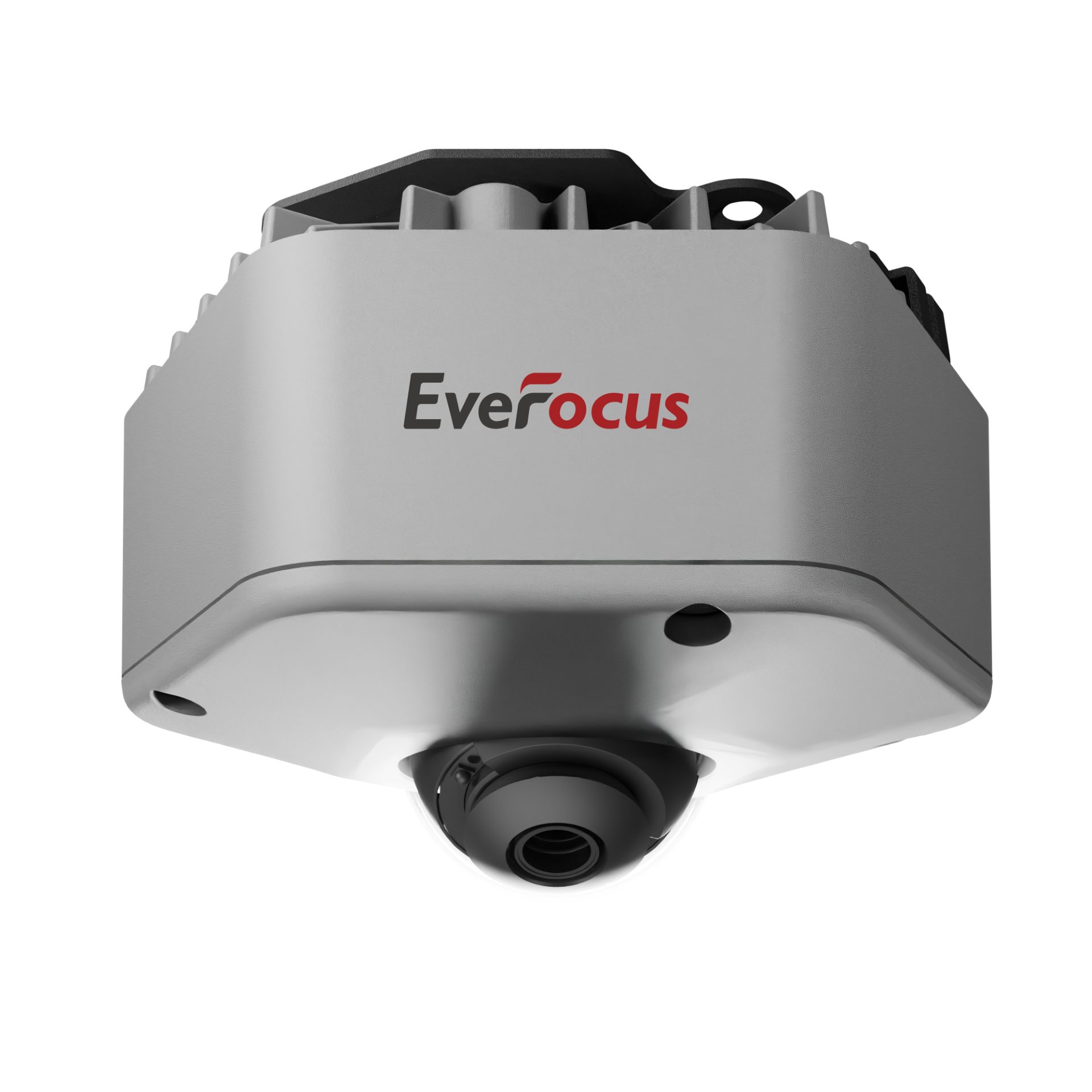

Superb AI Camera, NVIDIA® Jetson Orin
•8MP image with excellent low-light performance
•Powered by NVIDIA® Jetson Orin™ Nano, 20~40 TOPS, Super kit is up to 34~67 TOPS
•Day & Night version with STARVIS 2 Technology
•Include microSD slot for local storage
•With IK10 / IP66 protection rate
•Support remote HW / SW reset and OTA
•Supports optional WiFi
•Powered by NVIDIA® Jetson Orin™ Nano, 20~40 TOPS, Super kit is up to 34~67 TOPS
•Day & Night version with STARVIS 2 Technology
•Include microSD slot for local storage
•With IK10 / IP66 protection rate
•Support remote HW / SW reset and OTA
•Supports optional WiFi
Specification
System
GPU
NVIDIA Jetson OrinTM Nano Ampere architecture with 1024 CUDA cores and 32 tensor cores
CPU
6-core Arm® Cortex® -A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
Memory
8GB 128-bit LPDDR5 68GB/s
Storage
1x MicroSD slot, SDHC/SDXC max. 1TB
Interfaces
Card Slot
1x MicroSD Card Slot
USB (onboard)
1x USB Type-C for Config
Display
1x DP 1.2 (+MST) port
Audio
A MIC in
Power Input
1x GbE with IEEE 802.3bt (PoE++), 1x 9V~54VDC Power-input, Terminal Block
Power Button
1x Reset button, 1x Power On key
Network
Ethernet
1x GbE with IEEE 802.3bt (PoE++), RJ45
Protocol
ONVIF(Profile G, S, T, M), RTMP, RTSP
Optional
Wireless
802.11a/b/g/n/ac wireless
Software & Algorithm
OS
Jetson Linux / Ubuntu
SDK/Utility
NVIDIA JetPack SDK
AI Model
NVIDIA Jetson provides a complete edge AI platform for building, deploying, and scaling robotics, humanoid, vision AI, and agentic applications
Power Supply
Power Requirements
GbE with IEEE 802.3bt (PoE++) / DC 9V~54V
Power Consumption
TBC
Environmental and Mechanical
Dimensions (W x D x H)
148 mm x 164 mm x 105 mm
Weight
1.8 kg (TBC)
Mounting/Installation
1x M4 / 3x M6 Screw holes
Operating temp.
-20~50°C
Storage Temp.
-40~70°C
Storage Humidity.
5% ~ 95%, non-condensing
Protect Rate
IP66 / IK10
Certification
Regulation
CE, FCC Project Base: PSE, BSMI, UL...
Camera Lens
Image Sensor
SONY IMX678, Starvis 2
Pickup Device / Shutter
1/1.8", Rolling shutter
Resolution
4K (8MP) 3840 (H) x 2160 (V
Frame rate (max.)
Up to 30 fps
Lens Type
Fixed lens
Aperture (D/f')
F1.6
Focal Length & Field of View (H, V, D)
4.26mm, 110.5°, 59°, 132.6°
Sensor/Module Interface
MIPI 4-lane
Color/Mono
Color: 0.01 Lux (AGC ON, 30 IRE), B/W: 0.001 Lux (30 IRE), 0 Lux with IR illumination on
Day & Night
ICR switch actuator and build-in IR illuminators - RGB visible day mode, IR LED light (x4)
IR Wavelength & pick up range
850nm up to 30m
Video Enhancement
HDR, DOL HDR, Clear HDR, Super High Conversion Gain, high NIR sensitivity
Video Encode / Decode (Orin Nano)
Encode: 1080p30 supported by 1-2 CPU cores; Decode: 1x 4K60 (H.265), 2x 4K30 (H.265), 5x 1080p60 (H.265), 11x 1080p30 (H.265)
ONVIF
Profile G, S, T, M supported
