NDAA / TAA

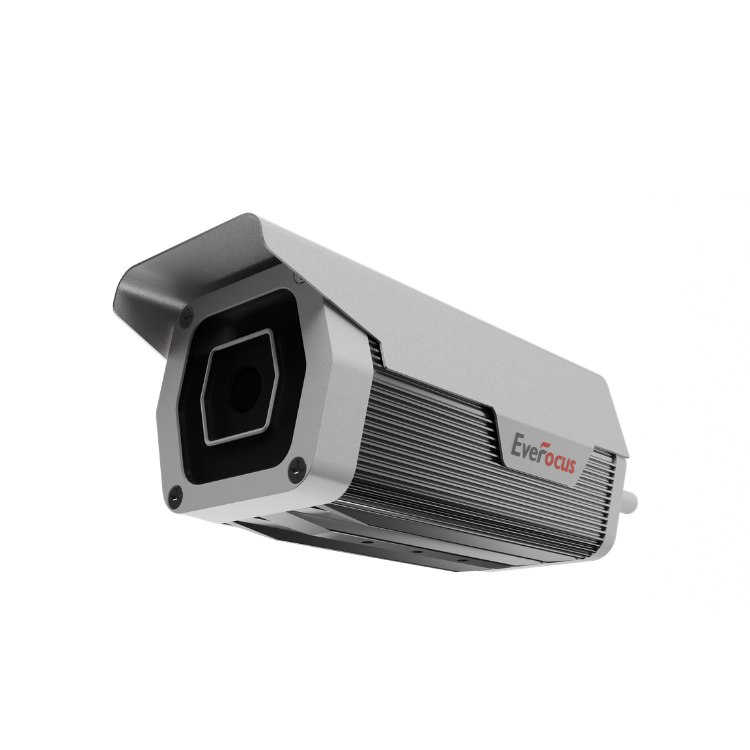

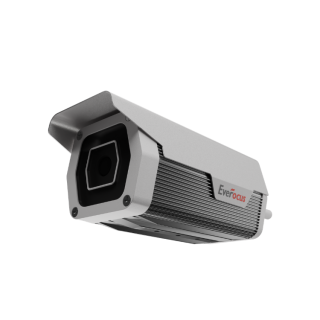

SNA-Series(Preliminary)
Superb AI Camera, NVIDIA® Jetson Orin
•5MP image with excellent low-light performance
•Powered by NVIDIA® Jetson Orin™ Nano and NX, 20~100 TOPS, Super mode is up to 34~157 TOPS
•Day & Night version with STMicroelectronics VD1943 RGB-NIR cutting-edge Technology
•Multiple I/O interface connections
•Include both microSD, M.2 SSD slot for local storage
•With IK10 / IP66 protection rate
•Supports optional WiFi and 5G, GPS (alternative)
•Powered by NVIDIA® Jetson Orin™ Nano and NX, 20~100 TOPS, Super mode is up to 34~157 TOPS
•Day & Night version with STMicroelectronics VD1943 RGB-NIR cutting-edge Technology
•Multiple I/O interface connections
•Include both microSD, M.2 SSD slot for local storage
•With IK10 / IP66 protection rate
•Supports optional WiFi and 5G, GPS (alternative)
Specification
System
GPU
NVIDIA Jetson OrinTM NX Ampere architecture with 1024 CUDA cores and 32 tensor cores
CPU
8-core Arm® Cortex® -A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
Memory
16GB 128-bit LPDDR5 102GB/s
Storage
1x M.2 SSD M-Key slot support NVMe max. 2TB, 1x MicroSD slot, SDHC/SDXC max. 1TB
Interfaces
Card Slot
1x Micro SD Card Slot, 1x M.2 M-Key Slot
USB (onboard)
1x USB Type-C for Config, 1x DP 1.2 (+MST) port, DIDO 2 in / 2 out
Display
D MIC input (RCA female) / External SPK output (RCA female)
Audio
1x dual-color LED (Power by DC, Power by PoE)
Power Input
1x GbE with IEEE 802.3bt (PoE++), 1x 9V ~ 48V DC Power-input, Terminal Block
Power Button
1x Reset button, 1x Power On key
Network
Ethernet
1x GbE with IEEE 802.3bt (PoE++), RJ45
Protocol
ONVIF(Profile G, S, T, M), RTMP, RTSP
Optional
Wireless
802.11a/b/g/n/ac wireless; external 5G / GPS (alternative)
Software & Algorithm
AI Model
NVIDIA Jetson provides a complete edge AI platform for building, deploying, and scaling robotics, humanoid, vision AI, and agentic applications.
Software
OS
Jetson Linux / Ubuntu
SDK/Utiltiy
NVIDIA JetPack SDK
General
Dimensions (W x D x H)
100mm x 260mm x 94mm
Weight
2.2 kg (TBC)
Operating Temp.
-20~50°C
Mouting/Installation
1/4-20 UNC Screw holes
Storage Temp.
-40~70°C
Storage Humidity.
5% ~ 95%, non-condensing
Protect Rate
IP66 / IK10
Global Shutter Camera
Image Sensor
STMicroelectronics VD1943, RGB-NIR
Pickup Device / Shutter
1/2.5”, Global shutter
Resolution
5MP 2560 (H) x 1920 (V)
Frame rate (max.)
Up to 30 fps
Lens Type
Vari focal lens
Aperture (D/f')
F1.86 (W) ~ F3.32(T)
Focal Length
3.53mm - 9.85mm
Field of View (H, V, D)
Wide: 102.7°(H) x 76.4°(V) x 142.2°(D), Tele: 33.6°(H) x 26.0°(V) x 42.5°(D)
Sensor/Module Interface
MIPI 4-lane
Min. Illumination
Color: 0.05 Lux (noise reduction, 30 IRE), B/W: 0.005 Lux (30 IRE), 0.0 Lux with IR strobe illumination on
Day & Night
Dual and single exposure modes with separated controls of RGB pixels and NIR pixels, IR strobe LED under low light
IR Wavelength & pick up range
850nm up to 20 m (object material and type classification) / 16 m (ANPR)
Video Enhancement
Automatic dark calibration, Integrated noise reduction feature, Dynamic defective pixel correction, Embedded Bayer reconstruction with NIR depollution, Embedded NIR smart upscale to full resolution monochrome output
ONVIF
Profile G, S, T, M supported
Rolling Shutter Camera
Image Sensor
SONY IMX678, Starvis 2
Pickup Device / Shutter
1/1.8", Rolling shutter
Resolution
4K (8MP) 3840 (H) x 2160 (V)
Frame rate (max.)
Up to 30 fps
Lens Type
Fixed lens
Aperture (D/f')
F1.6, F2.0
Video Enhancement
HDR, DOL HDR, Clear HDR, Super High Conversion Gain, high NIR sensitivity
IR Wavelength & pick up range
850nm up to 30m, 850nm up to 60m
Day & Night
ICR switch actuator and build-in IR illuminators - RGB visible day mode, IR LED light (x8)
Min. Illumination
Color: 0.01 Lux (AGC ON, 30 IRE), B/W: 0.001 Lux (30 IRE), 0 Lux with IR illumination on
Sensor/Module Interface
MIPI 4-lane
Field of View (H, V, D)
110°(H), 60°(V), 134°(D) , 83.8°(H), 52.8°(V), 93°(D)
Focal Length
4.25mm, 4.4mm
