NVIDIA® Jetson AGX Orin™
NVIDIA 8/12-core Arm® Cortex®-A78AE v8.2
+
__26B069mZxd.png)
Robotic Controllers

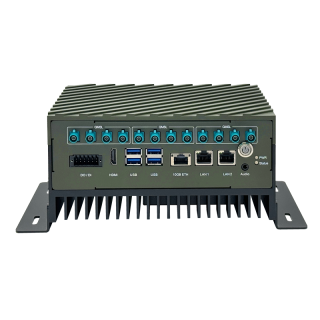

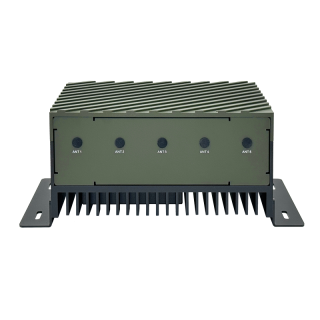

EAR-70N
Autonomous car controller / NVIDIA Jetson AGX Orin
• Powered by NVIDIA® Jetson AGX Orin™ Module
• Support 12x GMSL camera input via FAKRA Z connectors
• Multiple I/O interface connections for data collection
• Gigabit LAN, USB 3.2, Series Ports, CAN-FD, HDMI
• Wide range power input 9~36VDC
• Support 12x GMSL camera input via FAKRA Z connectors
• Multiple I/O interface connections for data collection
• Gigabit LAN, USB 3.2, Series Ports, CAN-FD, HDMI
• Wide range power input 9~36VDC
Specification
System
CPU/GPU
Memory
32/64 GB 256-bit LPDDR5 DRAM
Storage
1 x M.2 M-Key 2280, support NVMe
Real time clock
Yes
Indicators
1 x LED indicator (Power)
Wireless
1 x M.2 E-Key 2230, 1 x M.2 B-Key 3052
Operating system
Linux (NVIDIA JetPack 6.2)
Power Supply
Power Requirement
9 ~ 36 VDC
Power Consumption
TBD
MTBF (Hours)
--
Environmental and Mechanical
Dimension
210 x 145 x 97 mm
Weight
TBD
Mouting/Installation
Wall Mount
Operating Temperature
-4 °F ~ 140 °F (-20 °C ~ 60 °C)
Storge Temperature
-40 °F ~ 176 °F (-40 °C ~ 85 °C)
Operating Humidity
10% ~ 95% relative humidity, non-condensing
Certification
Regulations
CE, FCC
Carrier
Planning
Interface
Serial Port
2 x RS-232/422/485 switchable, Terminal Block
CAN Bus
1 x CAN Bus, 3- Terminal Block
Ethernet
2 x GbE LAN, RJ45
1 x 10GbE LAN, RJ45
1 x 10GbE LAN, RJ45
USB
4 x USB 3.2 Gen1, Type-A
1 x USB 3.2 Gen1, Type C
1 x USB 3.2 Gen1, Type C
DI/DO
8 x Alarm I/O
Display
1 x HDMI 2.0-Out
Power Connector
3-pin Terminal Block
Debug Port
1 x Micro USB for console
Expansion Slot
1 x SIM card slot, 1 x PCIe x8 Connector
