Vision Embedded System

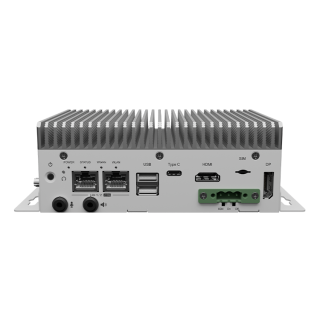

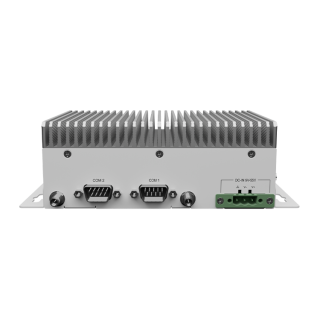

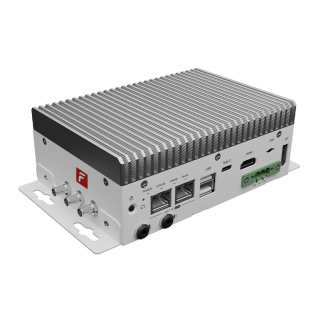

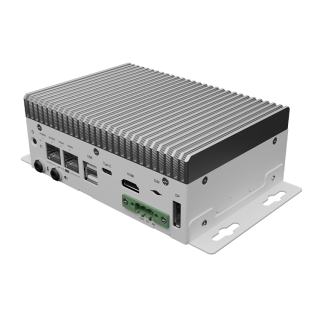

VAI-MTL AI-Ready Vision Embedded System
• AI Ready Fanless in-vehicle system
• Intel® Core™ Ultra series • Include NPU
• DDR5 5600MHz memory, up to 48GB
• 3 DisplayPorts, up to 4K resolution
• Multiple USB ports, up to 10Gbps data transfer
• Supports Intel® ESDQ and OpenVINO™ Toolkit
• Supports 2.5GbE LAN x 2 (Intel® TSN supported)
• 9V to 55V wide range DC power input (with ignition control)
• CE, FCC, UKCA, EN50155
• Intel® Core™ Ultra series • Include NPU
• DDR5 5600MHz memory, up to 48GB
• 3 DisplayPorts, up to 4K resolution
• Multiple USB ports, up to 10Gbps data transfer
• Supports Intel® ESDQ and OpenVINO™ Toolkit
• Supports 2.5GbE LAN x 2 (Intel® TSN supported)
• 9V to 55V wide range DC power input (with ignition control)
• CE, FCC, UKCA, EN50155
Specification
System
Processor
Processor Intel® Core™ Ultra 7 165U Processor (12 Cores)
NPU
Intel® AI Boost
Graphics
Intel® Graphics
Ethernet
Intel® I226
Memory
DDR5 5600MHz SO-DIMM x 1, up to 48GB
Storage
1 SATA III (6Gbps) with internal 2.5" SSD bracket M.2 Key M Socket (2280, PCIe 4.0 x4)
LED Indicators
Power, HDD, WWAN, WLAN
BIOS
AMI SPI 128Mbit
Operating System
Window 11 / Linux (by request)
Interface
Serial Port
2 x RS-232/422/485 (ESD 8KV)
USB
1 x USB 3.2 Gen 2x2 Type-C support max 20Gbps and DP 1.4 (5V/3A) 2 x USB 3.2 Gen 2 Type-A
Buttons
Power, Reset
Antenna
5 x Antenna holes
Ethernet/PoE
2 x 2.5 GbE (RJ-45)
Audio
1 x Line-out 1 x Mic-in
Expansion Slot
1 x M.2 Key B Socket (3042/3052, PCIe x2/USB 3, default/USB 2) 1 x M.2 Key E Socket (2230, PCIe x1/USB 2) 1 x External Nano SIM Card Socket
Security
TPM 2.0
Recording
Format
H.264 / H.265
Resolution
1920 x 1080 at 30fps (NTSC) / 25fps (PAL)
Video
Format
H.264 / H.265
Display
1 x HDMI 2.1 : Up to 4096x2304 @60Hz 1 x DisplayPort 1.4 : Up to 4096 x 2304 @60Hz 1 x DisplayPort 1.4 : Up to 3840 x 2160 @60Hz by USB Type-C
Capture
1 x HDMI Input Max Input Video Resolution 3840x2160P60 1 x HDMI Loop Max Loop Out Video Resolution 3840x2160P60 Video Format: RGB/YUY2/NV12 Audio Sampling Rate: 32/44.1/48KHz Color Depth: 10 bit
General
Power Supply
DC 9-55V (with ignition pin)
Dimensions (W x D x H)
150.4 x 106.2 x 57.0mm (without bracket)
Mounting
Wall Mount
Gross Weight
1.3kg
Operating Temp.
-40°C ~ 60°C 0°C ~ 40°C (w/ Capture)
Storage Temp.
-40°C ~ 85°C
Storage Humidity
5%~95% (non-condensing); 95%@75°C
Shock
MIL-STD-810G
Vibration
MIL-STD-810G
Certification
CE, FCC, UKCA, EN50155, EN50121-3-2
