Specialty camera

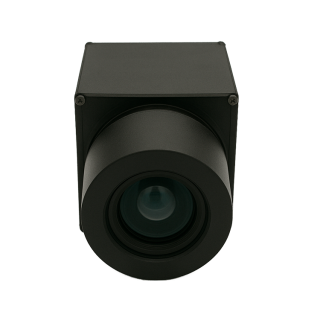

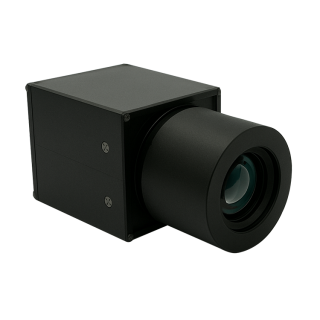

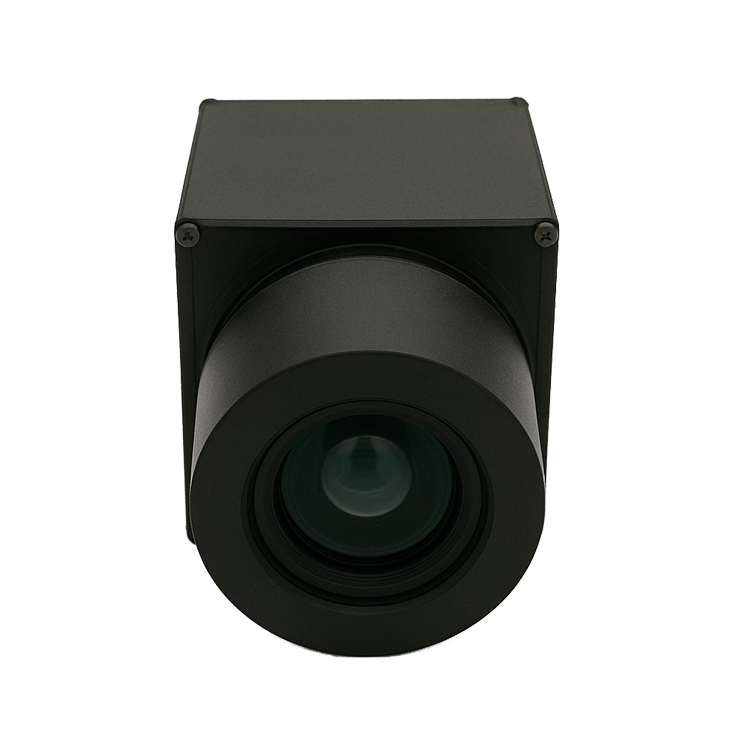

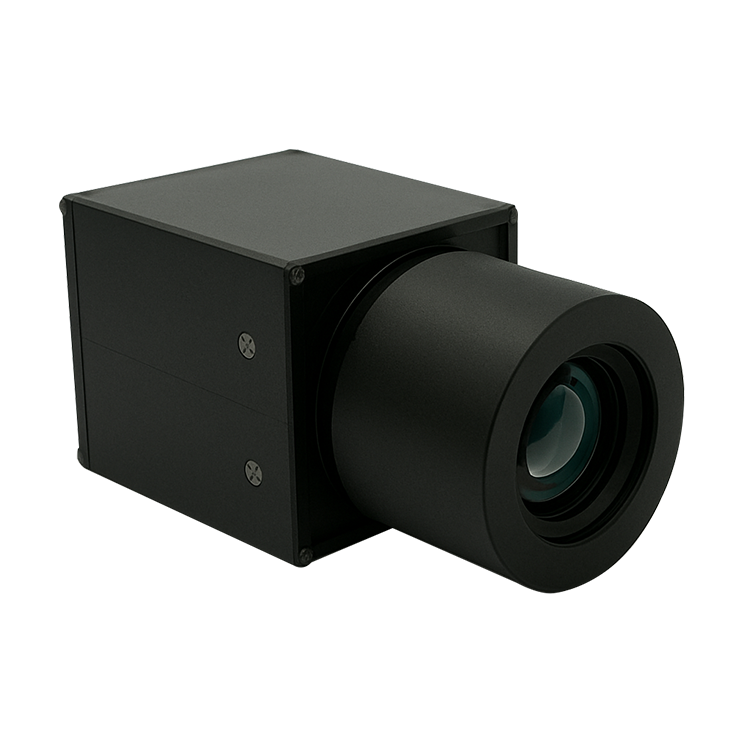

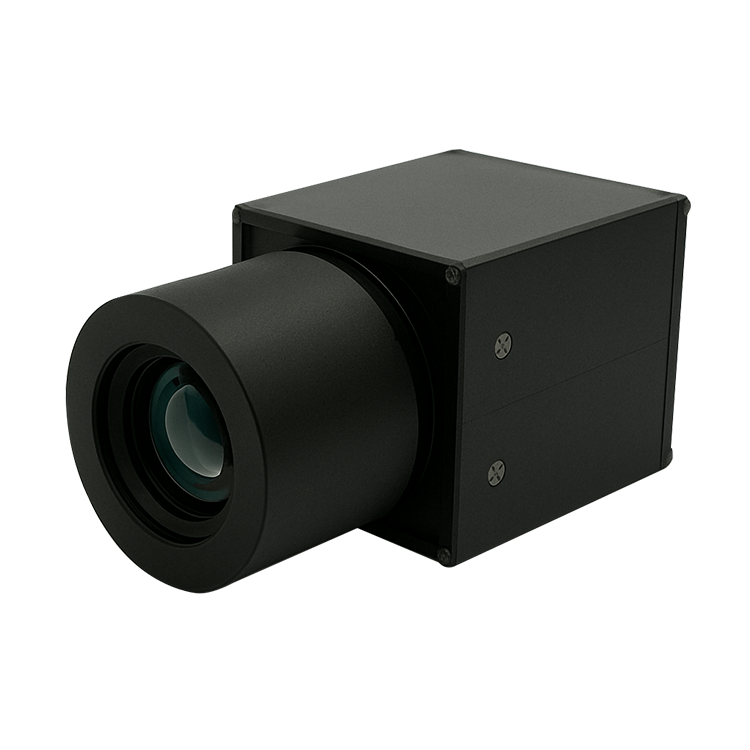

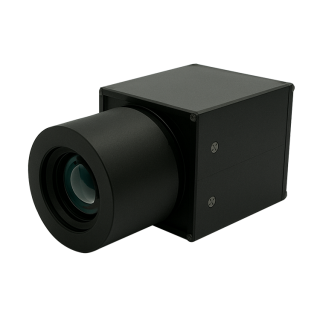

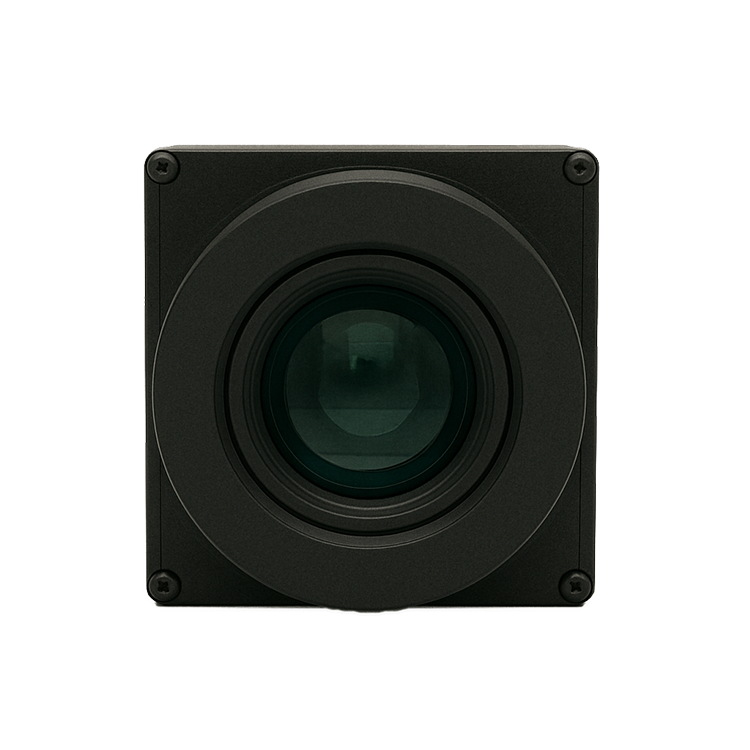

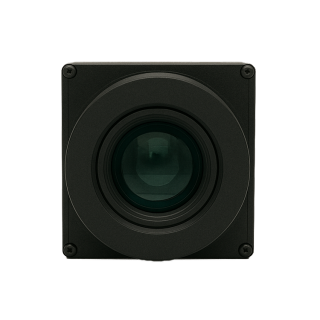

EUTH1000 (Prelim.)
Waterproof Industrial Thermal Camera
⚫Build-in Vanadium Oxide Uncooled Infrared Focal Plane Detector
⚫ Astounding image Thermal Sensor Sensitivity <50mK
⚫ IR Wavelength up to 14μm
⚫ Waterproof IP67 grade
⚫ Low power consumption 2.5W@MAX 500mA
⚫ Wide temperature range -40℃ ~ +85℃
⚫ Astounding image Thermal Sensor Sensitivity <50mK
⚫ IR Wavelength up to 14μm
⚫ Waterproof IP67 grade
⚫ Low power consumption 2.5W@MAX 500mA
⚫ Wide temperature range -40℃ ~ +85℃
Introduction
Specification
Camera
Focal Length
4.5mm
Focus range
0.2m~∞
IR Wavelength
8~14μm
Pixel Size
17um
Thermal Sensor Sensitivity
<50mK
Detector Frame Rates
30Hz
Non-uniformity correction
Auto shutter correction
FOV
85°/67˚±5° (H x V)
F No.
1.0 ± 5%
Effective Pixels
384(H) X 288(V)
General
Detector
Vanadium Oxide Uncooled Infrared Focal Plane Detector OSD Languages
Connector Type
Type-C to USB2.0 Type-A
Case Material
Metal
Power Supply
5 VDC (USB 2.0)
Max Power Consumption
2.5W@MAX 500mA
Operating Temperature
-40℃ ~ +85℃
Weight
TBD
Weather Resistance
IP67
Certificates
CE, FCC, RoHS
Video
Video Format
NTSC / PAL
Image output formats
14bit
