Mobile DVR

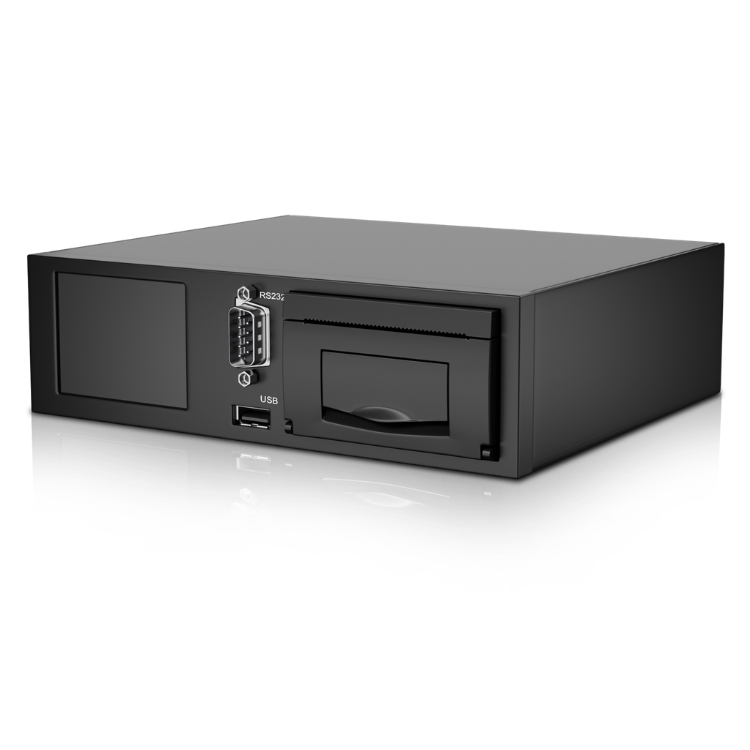

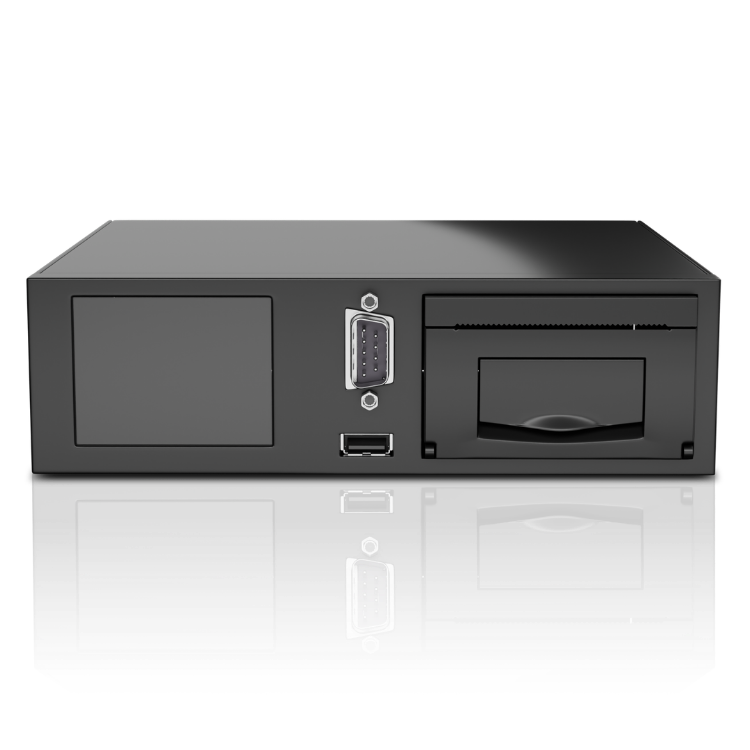

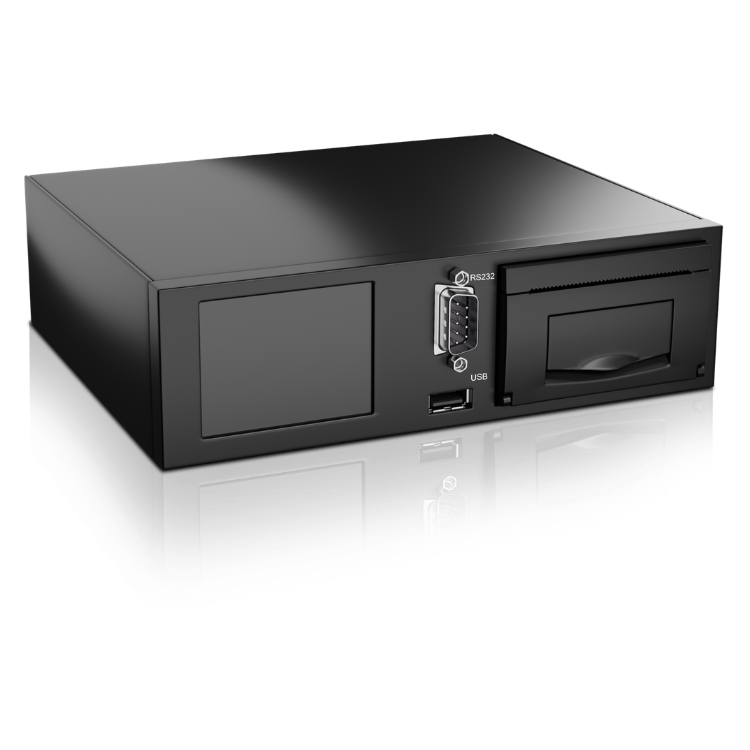

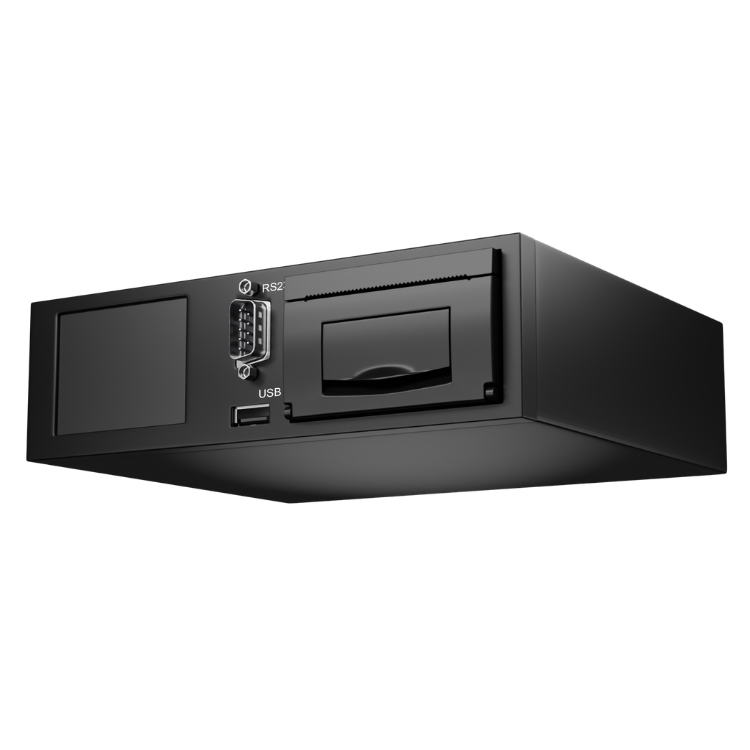

EMV161ODF-N

Digital Tachograph With GPS Positioning And Built-In Thermal Printer

• 64-bit ARM quad-core chip for stable data processing
• GPS positioning for vehicle location, speed, mileage, and driving activity monitoring
• 2.4" LCD touch panel for easy system operation
• USB and RS232 interfaces for driving data download
• Built-in thermal printer for vehicle number, time, speed, mileage, incident, and fault information

INQUIRY COMPARE

Specification

Storage Device

Memory

5G eMMC

Display Output

Main Screen

LCD

2.4" LCD x 1

Digital dash cam

System Core

64-bit ARM quad-core chip

Data Download Interface

1 USB port, 1 RS232 port

Satellite positioning

GPS Function

YES

External Interface

I/O

1 x USB type A, 1 x RS232 DB9, 1 x GPS 4pin, 1 x LAN optional

Generally

Documentary Information

Vehicle number, time, speed, mileage, GPS satellite positioning latitude and longitude, and monitoring of driving activities

System Operation

Touch panel

Power supply

12-24VDC

Operating Temperature

-20°C~70°C

Size(W x D x H)

160 x 186 x 50 mm

Current Power Consumption

0.06A @ 24VDC / 1.44Watt

Certification

VSCC 56-4, 16-1

Thermal Printer Built-in Device

Print vehicle number, time, speed, mileage, driving activity, incident and fault information

Thermal Printer Built-In Device

Operating Temperature

0°C~55°C / 32°F~131°F

Operating Humidity

10%~90%
