Analog Camera

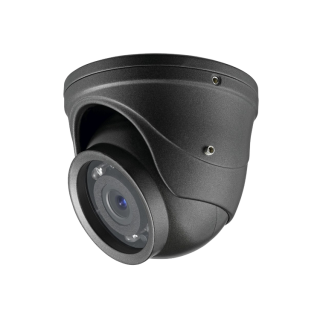

EMD935F
1080p Full HD with high flexibility and performance for astounding image D-WDR to improve the visibility under high contrast scene
• 1080p Full HD with high flexibility and performance for astounding image
• 1080p CMOS sensor, delivering amazing high sensitivity
• Astounding image quality from the 2.8mm lens
• Extended IR range up to 10m / 33ft. with 6 LEDs (Depending on scene IR reflectivity)
• D-WDR to improve the visibility under high contrast scene
• 3D-Noise Reduction ensures less blurry moving subjects, vivid and high SN ratio images even under low light environments
• Supports 1080p, 720p & 960H analog signal output, which can be easily switched using OSD Joystick
• The flexible angle viewing with its 3-Axis rotation design allows wall or ceiling mounting
• eZ Controller function: Control camera OSD settings and PTZ operation directly from DVR end
• 1080p CMOS sensor, delivering amazing high sensitivity
• Astounding image quality from the 2.8mm lens
• Extended IR range up to 10m / 33ft. with 6 LEDs (Depending on scene IR reflectivity)
• D-WDR to improve the visibility under high contrast scene
• 3D-Noise Reduction ensures less blurry moving subjects, vivid and high SN ratio images even under low light environments
• Supports 1080p, 720p & 960H analog signal output, which can be easily switched using OSD Joystick
• The flexible angle viewing with its 3-Axis rotation design allows wall or ceiling mounting
• eZ Controller function: Control camera OSD settings and PTZ operation directly from DVR end
Specification
Camera
Pickup Device
1080p CMOS sensor
Effective Pixels
1920 (H) x 1080 (V)
Scanning System
Progressive Scan
Sensitivity
0 Lux with IR On
Electronic Shutter
Auto / Manual (x30 ~ 1/50,000) / FLK
Gamma Correction
0.45
Lens Type
2.8mm fixed lens
FOV (D x H x V)
112° x 61° x 128°
Sync Mode
Internal
IR LED
6 Units
IR Distance
Up to 10m / 33ft. (Depending on scene IR reflectivity)
Day/Night
Ext, Auto, Color, B/W
UTC Function
Supported
DNR
2DNR / 3DNR, Off
DWDR
On / Off / Auto
SensUp
Off / Auto (x2 ~ x30)
Defog
Off / Auto
Mirror
Off / Mirror / V-Flip / Rotate
Video
Video Format
NTSC / PAL (Can be switched via OSD)
BLC
OFF / BLC / HS BLC Selectable
AGC
0 ~ 15 Levels
White Balance
ATW / AWC-SET / Indoor / Outdoor / Manual / AWB
General
OSD Languages
English / Simplified Chinese / Traditional Chinese / German / French / Italian / Spanish / Polish / Russian / Portuguese / Netherlands / Turkish
Motion Detection
Off / On for 4 selectable zones
Privacy Mask
Off / On for 4 selectable zones
Environmental
IP68 Weather Resistant
Power Source
12VDC
Power Consumption
12VDC Power Consumption 1.5W max
Operating Temperature
-10°C ~ 50°C / 14°F ~ 122°F
Humidity
Less than 80%
Dimensions (Ø x H)
60.1 x 58.4mm / 2.4" x 2.3”
Weight
160g / 0.35lb
Certificates
CE, FCC, RoHS, E-Mark
