BSIS Camera
EMD2FR 2D-AI (Prelim.)

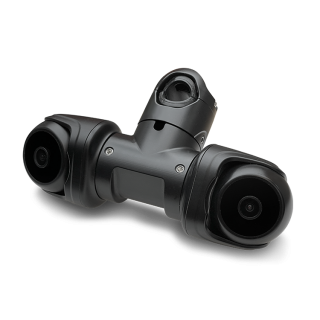

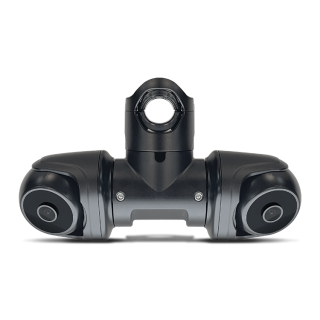

1080p Full HD Mobile IR Mini BSIS Camera
[Project-Based] MoQ & L/T Required
．Build-in BSD (blind spot detection) AI function and trigger alarm output
．1080p Full HD with high flexibility and performance for astounding image
．1080p CMOS sensor, delivering amazing high sensitivity
．Astounding image quality from the 2.1mm lens
．Extended IR range up to 5m / 16ft. with 6 LEDs (Depending on scene IR reflectivity)
．3D-Noise Reduction ensures less blurry moving subjects, vivid and high SN ratio images even under low light environments
．The flexible angle viewing with its 3-Axis rotation design allows mobile bracket mounting
．1080p Full HD with high flexibility and performance for astounding image
．1080p CMOS sensor, delivering amazing high sensitivity
．Astounding image quality from the 2.1mm lens
．Extended IR range up to 5m / 16ft. with 6 LEDs (Depending on scene IR reflectivity)
．3D-Noise Reduction ensures less blurry moving subjects, vivid and high SN ratio images even under low light environments
．The flexible angle viewing with its 3-Axis rotation design allows mobile bracket mounting
Specification
Camera
Pickup Device
1080p CMOS sensor OSD
Effective Pixels
1920 (H) x 1080 (V) Defog Off
Scanning System
Progressive Scan
Sensitivity
0 Lux with IR On
Lens Type
2.1mm fixed lens
FOV (D x H x V)
120° x 62° x 143°
BLC
OFF / BLC / HS BLC Selectable
AGC
0 ~ 15 Levels
White Balance
ATW / AWC-SET / Indoor / Outdoor / Manual / AWB
