4K HDMI M.2 Capture Cards

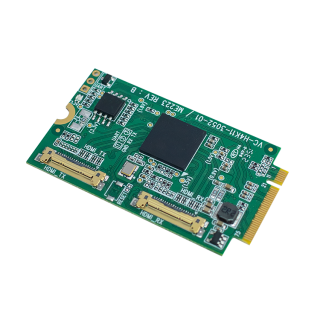

EVC-H411-3052-U1
HDMI 2.0 M.2 3052 Capture Card
• M.2 3052 B key USB 3.1 gen 1 HDMI 2.0 capture card
• Support 1 channel HDMI2.0 input and l channel HDMI 2.0 passthrough
• Supports Hardware 3D de-interlace & scaler & Frame rate converter
• Supports HDR to SDR conversion
• Support for RGB , YUY2 , NV12 , P010 color sampling
• Support for 10 bit color depth
• Works on multiple operating system platforms (Windows 7/8.1/ 10/11, Mac and Linux OS)
• Support capture output image resolutions up to 3840x2160p30 SDR RAW or 1920x1080p60 HDR RAW
• Support UVC/UAC
• Support 4K2KP60 loop out (optional)
• Support capture output image resolutions up to 3840x2160p60 MJPEG
• Support 1 channel HDMI2.0 input and l channel HDMI 2.0 passthrough
• Supports Hardware 3D de-interlace & scaler & Frame rate converter
• Supports HDR to SDR conversion
• Support for RGB , YUY2 , NV12 , P010 color sampling
• Support for 10 bit color depth
• Works on multiple operating system platforms (Windows 7/8.1/ 10/11, Mac and Linux OS)
• Support capture output image resolutions up to 3840x2160p30 SDR RAW or 1920x1080p60 HDR RAW
• Support UVC/UAC
• Support 4K2KP60 loop out (optional)
• Support capture output image resolutions up to 3840x2160p60 MJPEG
Specification
Technical
Max Input Video Resolution
3840x2160P60
Max Loop Out Video Resolution
3840x2160P60
Bus Interface (Output Bandwidth)
USB 3.0
Max Capture Video Resolution
3840x2160P60 (MJPEG) or 3840x2160P30 (NV12)
Audio Input
HDMI Embedded Audio PCM
Recording Mode
Software or Hardware Compression
Video Format
RGB/YUY2/NV12/MPEG
Audio Sampling Rate
32/44.1/48KHz
Color Depth
10 bit
Resolution
HDMI In
3840x2160P60/30, 2560x1440P144/60, 1920x1080P240/120/60, 1920x1080i60/50, 720P60/50, 480P, 576P, 480i, 576i, 640x480P60
Capture
3840x2160P60/30, 2560x1440P60/59.94/50/30/29.97/25, 2560x1080P60 1920x1080P120/60/59.94/50/30/29.97/25, 1280x720P60,720x480P60 640x480P60
RAW Formats
YUV422 8 bits: YUY2 YUV420 8 bits: NV12, I420 RGB444 8 bits: RGB24 YUV420 8/10 bits: P010
Board Dimension
Form Factor
M.2 Type 3052 B
PCB Size
30mm x 52mm
PCB Thickness
0.8 mm +/- 0.08mm
Thermal Specification
Operating Temperature
32°F ~ 104°F (0°C ~ 40°C)
Storage Temperature
14°F ~ 176°F (-10°C ~ 80°C)
Power Consumption
Working Mode
2.36W
others
Recommended Edge Computer Models
EAC-30N1(eNVP-JON-AI), EAC-30N3(eNVP-JOX-AI)
