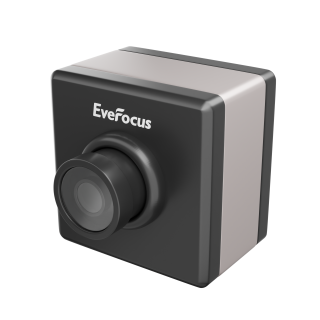

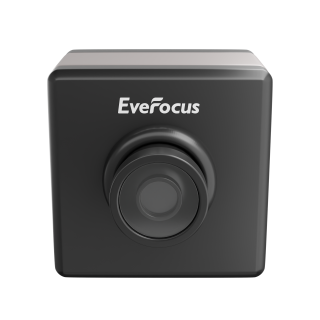

EGN-1520 GMSL Camera
5MP Global Shutter GMSL2 Camera with PoC
• Global shutter for clear motion capture
• 5MP OVX05B sensor, 2592 × 1944 resolution
• Up to 60 fps with YUV422 8/10 bit output
• MAX96717 serializer for stable high speed transmission
• -40°C to +85°C operation with IP69K protection
• 5MP OVX05B sensor, 2592 × 1944 resolution
• Up to 60 fps with YUV422 8/10 bit output
• MAX96717 serializer for stable high speed transmission
• -40°C to +85°C operation with IP69K protection
Specification
others
Sensor
OV OX05B CMOS
Optical Format
1/2.53"
Pixel Size
2.2 μm × 2.2 μm
Output Resolution
5MP, 2592 × 1944
Shutter
Global Shutter
Color Filter Array
RGB-IR
HDR
Basic support
LFM
Not supported
ISP
AVS7618
Output Interface
GMSL2 with PoC
Output Format
YUV422 8/10-bit
Serializer
MAX96717
S/N Ratio
39 dB
Power Supply
DC 6–12V (PoC)
Startup Time
TBC
Frame Rate
60 fps
Current Consumption
≤ 180 mA @ 12V
Operating Temperature
-40°C to +85°C
Storage Temperature
-40°C to +95°C
Dust / Waterproof Rating
IP69K
