NDAA / TAA

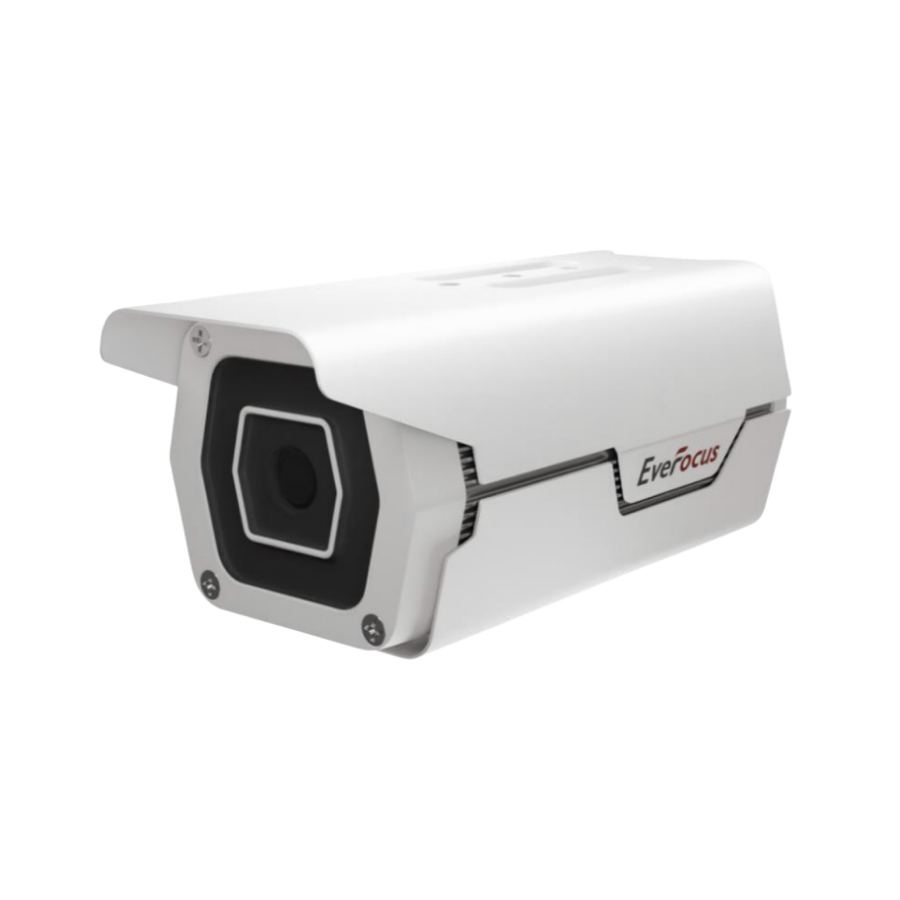

SQA-8B2 Series Edge AI Camera
Edge AI Camera with Starvis 2 Technology
• Qualcomm® Vantage AI model or EverFocus based
• High quality 8MP image with extraordinary low-light performance
• Powered by Qualcomm® QCS6490
• Day & Night version with STARVIS 2 Technology
• Multiple I/O interface connections
• Include both microSD, M.2 SSD slot for local storage
• Max. 12 TOPS INT8 computing power
• Optional pre-install AI inference model supporting object detection, license plate recognition, people counting
• High quality 8MP image with extraordinary low-light performance
• Powered by Qualcomm® QCS6490
• Day & Night version with STARVIS 2 Technology
• Multiple I/O interface connections
• Include both microSD, M.2 SSD slot for local storage
• Max. 12 TOPS INT8 computing power
• Optional pre-install AI inference model supporting object detection, license plate recognition, people counting
規格
類型
攝影機類型
Fixed, Modular Edge AI Camera
系統
中央處理器
Qualcomm® QCS6490
存儲
1x M.2 M-Key slot support NVMe, 1x Micro SD Card Slot
External Interface
Ethernet 以太網路
1x 2.5 Gbps with 802.3bt PoE PD, RJ45
數位輸入/輸出
DIDO 2 in / 2 out
顯示
N/A
External Interfaces
Series
N/A
音頻
1x D MIC input (RCA female), 1x External Speaker output (RCA female)
SD卡
1x Micro SD Card Slot
USB
1x USB Type-C for Config
電源輸入
1x PoE (802.3bt), 1x 9V ~ 48V DC Power-input, Terminal Block
電源按鈕
1x Reset button
LED
1x dual-color LED (Power by DC, Power by PoE)
擴充插槽
M.2
WiFi / 5G
軟體
作業系統
Yocto 5.0
Software
Qualcomm® Insight Vantage
SDK/Utiltiy
TBD
一般
尺寸 (寬 x 深 x 高)
100mm x 235mm x 94mm
重量
1.6 kg (TBC)
操作溫度。
-20~60°C
Mouting/Installation
1/4-20 UNC Screw holes
儲存溫度
-40~80°C
儲存溼度
5% ~ 95%, non-condensing
Camera
影像感測器
SONY IMX678, Starvis 2
感光元件 / 快門
1/1.8“, Rolling shutter
解析度
8MP/4K (3840x2160), CMOS
Lens
4.26mm, Fixed Lens, F1.6
視角 (H, V, D)
110.5°, 59°, 132.6°
鏡頭類型
Built-In
像素大小
2.0um x 2.0um
幀率（最大）
60fps
Color/Mono
Color
寬動態範圍
HDR(2T), Digital-Overlap (DOL) HDR, Clear HDR
